System 800 component
Model 801i
Part of System 800. A compact front-loaded horn system for small clubs through medium-sized outdoor events, with matching-width cabinets and subwoofer options.
Product features
- Infill stack model
- 12mm plywood enclosure
- Lightweight
- Low weight Neodymium magnets throughout
- This series features the same width and smart stack
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 8” | 290Hz-6kHz | 200w | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 300Hz - 20kHz |
|---|---|
| Nominal dispersion | 60 Horizontal |
| Connectors | 2 x SpeakON* NL4 |
System notes
Model801i has a horizontal directivity of 60. Since it has a wider directivity than the front road horns of other companies, Model801i has a simple enclosure design for the Grand stack. Use with System100 or System800.

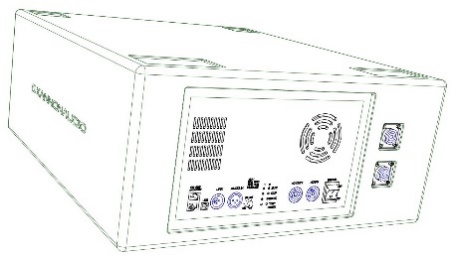

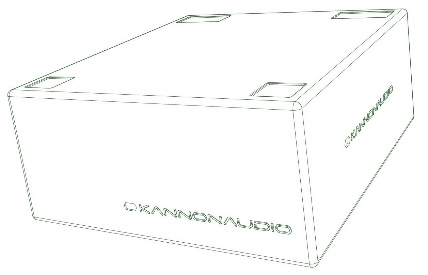

Accessories
- Spacer
- Model800A Hi
Original drawings & downloads

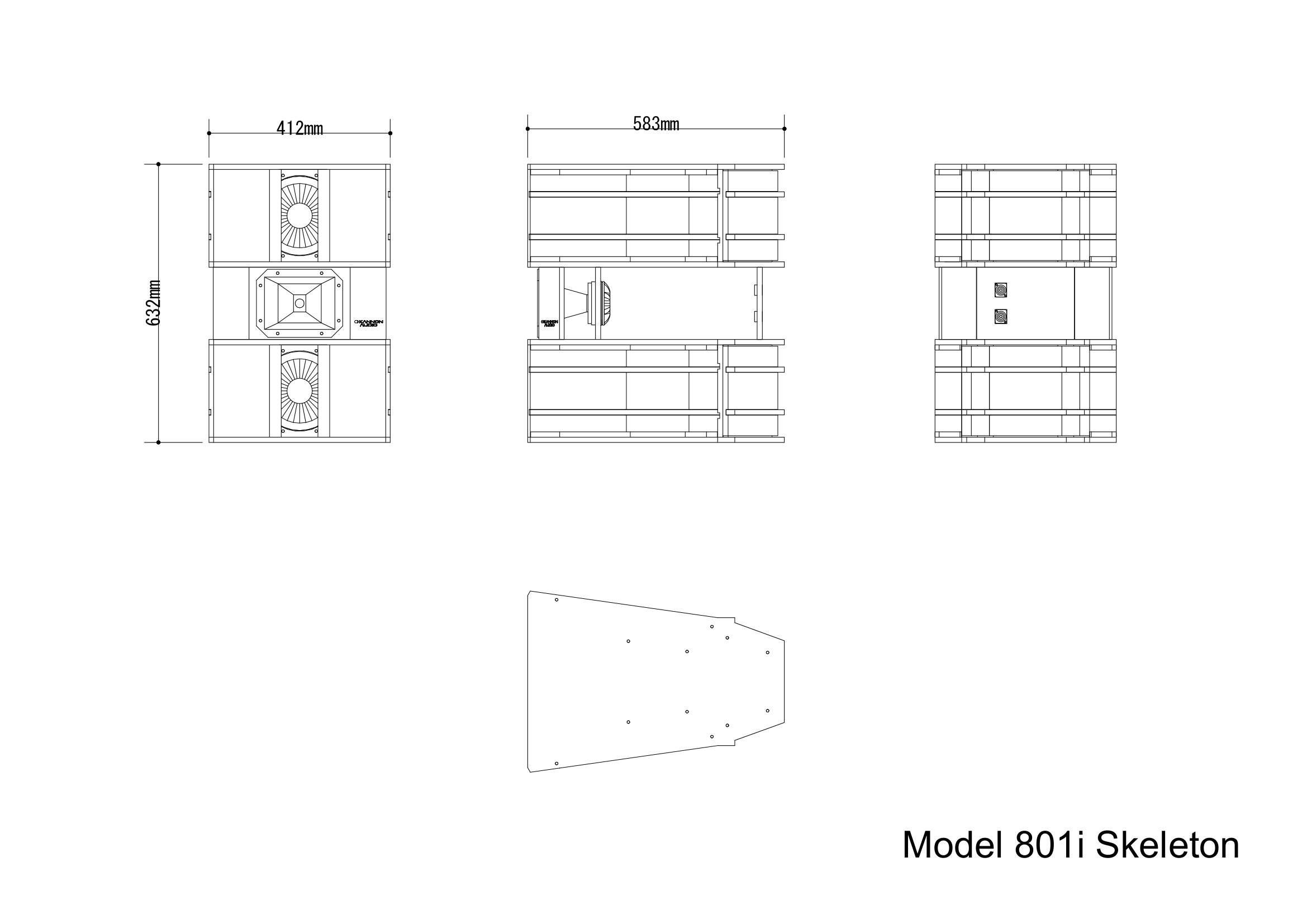

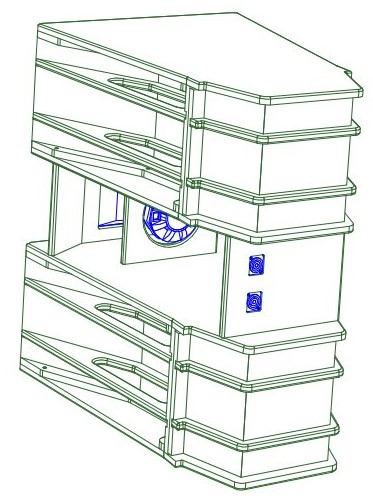

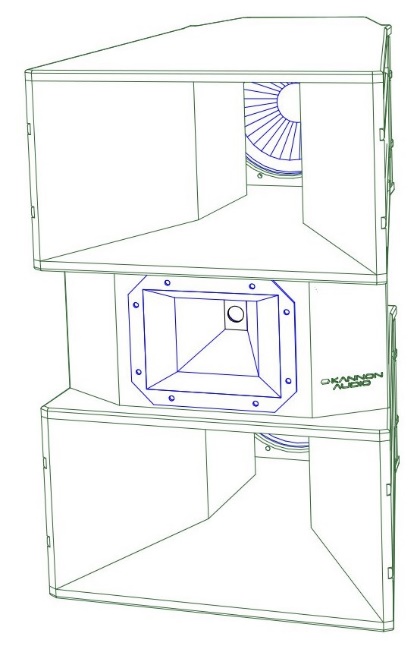

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model801i”. Confirm the specification for your order with Kannonaudio.
