System 800 component
Model 804
Part of System 800. A compact front-loaded horn system for small clubs through medium-sized outdoor events, with matching-width cabinets and subwoofer options.
Product features
- Grand stack model
- 12mm and 15mm plywood enclosure
- Lightweight
- Low weight Neodymium magnets throughout
- This series features the same width and smart stack
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 18” | 35Hz-3kHz | 1000w | 8Ohm |
Scroll sideways to see all specifications.
| Frequency response | 35Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |
System notes
Model804 has a horizontal directivity of 90. Since it has a wider directivity than the front road horns of other companies, it is possible to cover a wide area simply by stacking the main speakers vertically. Model804 has a simple enclosure design for the Grand stack. Use with Model801 and Model802.

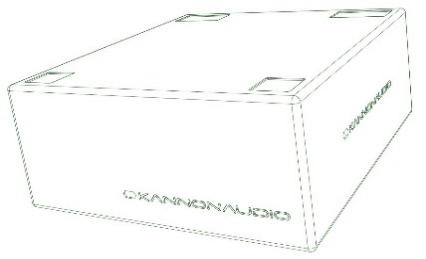

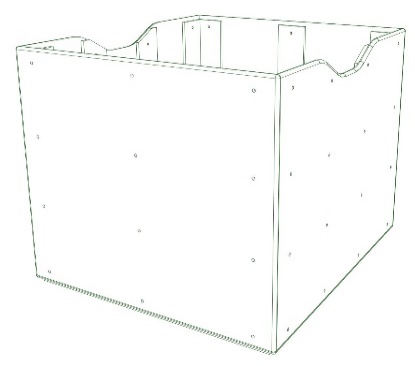

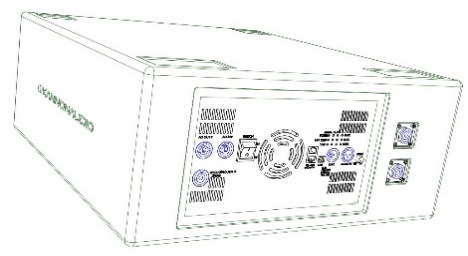

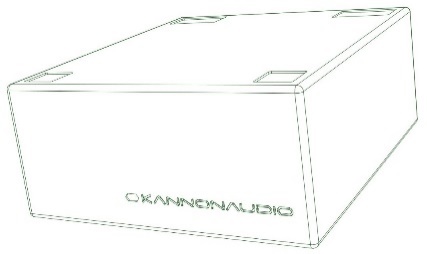

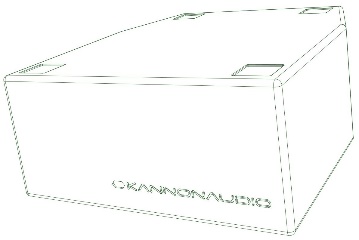

Accessories
- Spacer
- Model803S
- Model805S
- Model800A Low
- Model804 Model805 case

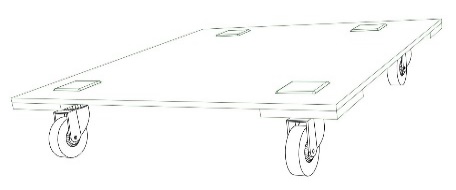

- Wheel board
Original drawings & downloads

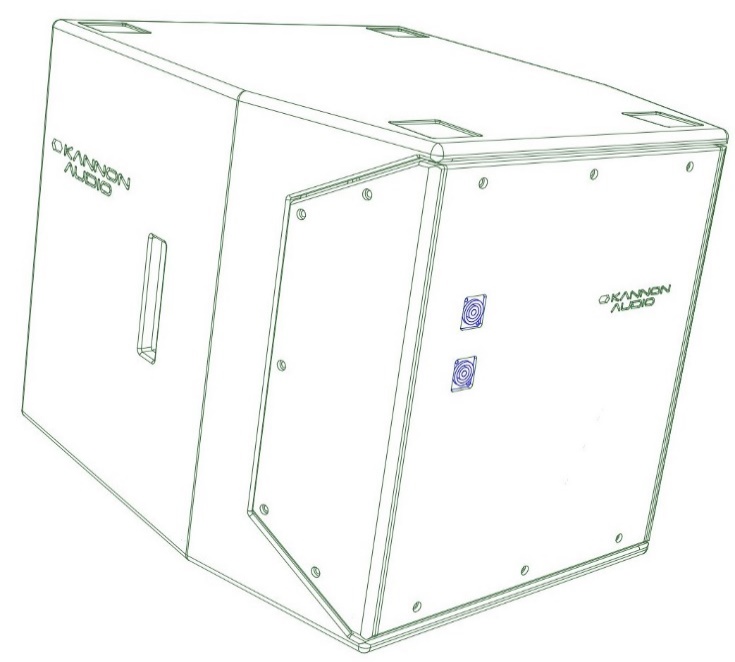

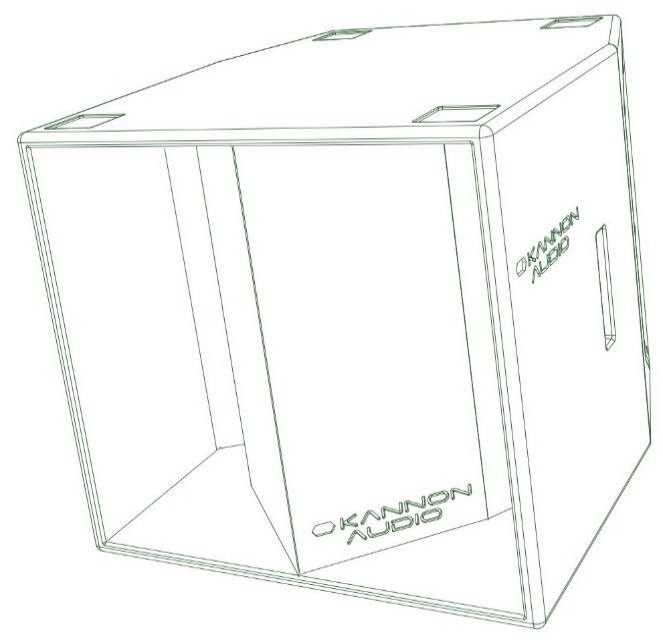

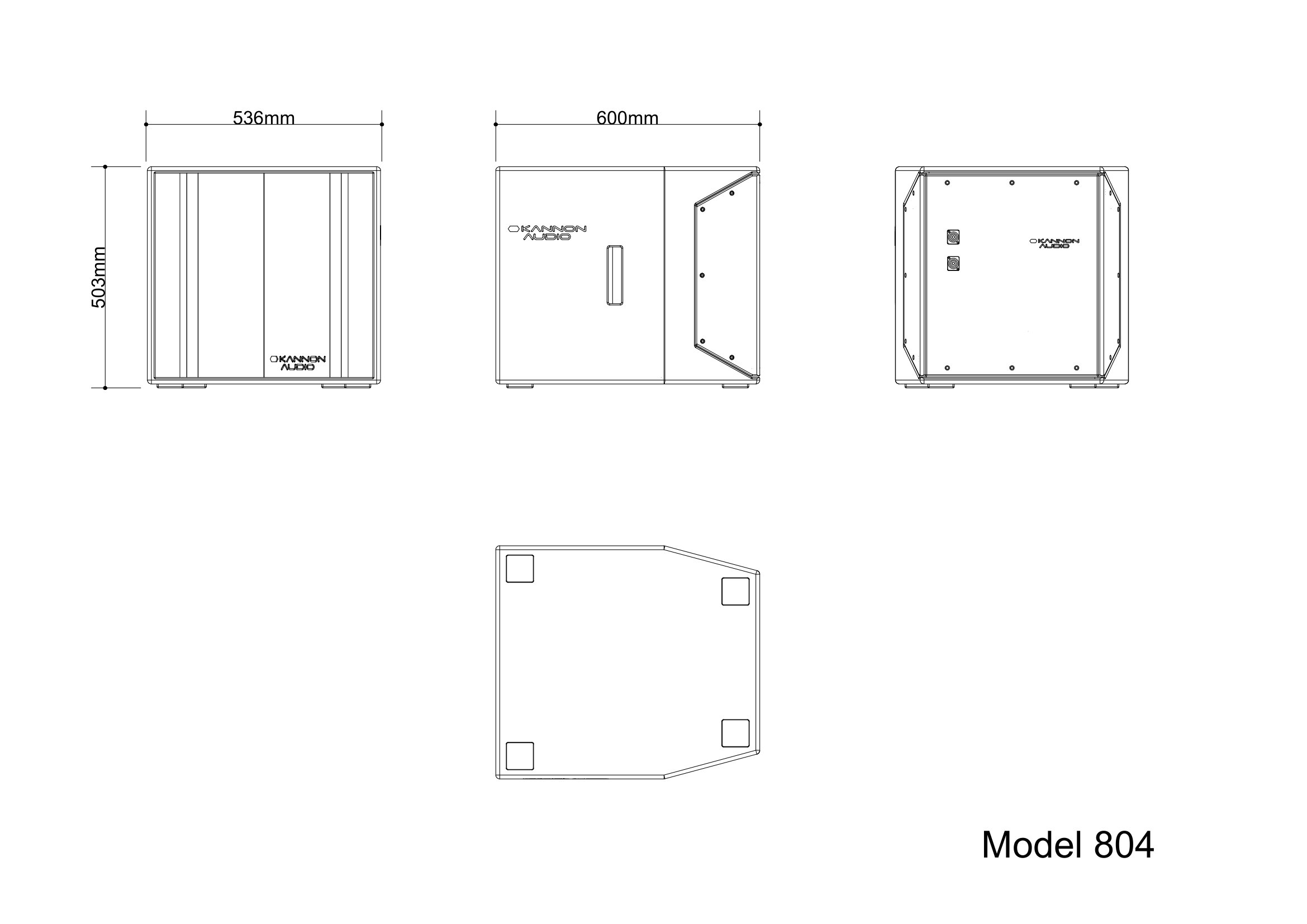

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model804”. Confirm the specification for your order with Kannonaudio.
