System 800 component
Model 801
Part of System 800. A compact front-loaded horn system for small clubs through medium-sized outdoor events, with matching-width cabinets and subwoofer options.
Product features
- Grand stack model
- 12mm and 15mm plywood enclosure
- Lightweight
- Low weight Neodymium magnets throughout
- This series features the same width and smart stack
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 8” | 290Hz-6kHz | 200w | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 300Hz - 20kHz |
|---|---|
| Nominal dispersion | 75 Horizontal |
| Connectors | 2 x SpeakON* NL4 |
System notes
Model801 has a horizontal directivity of 75. Since it has a wider directivity than the front road horns of other companies, it is possible to cover a wide area simply by stacking the main speakers vertically. Model801 has a simple enclosure design for the Grand stack. Use with Model802 and Model803 and Model804 or Model805.

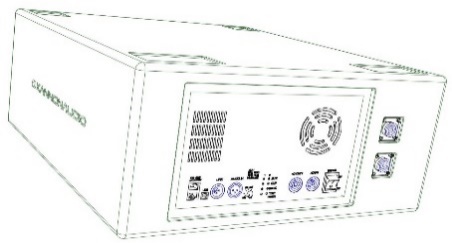

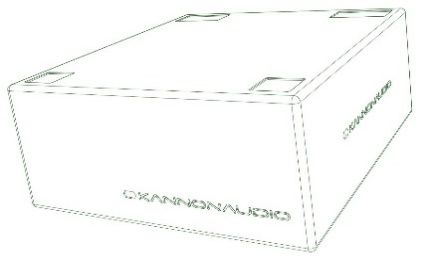

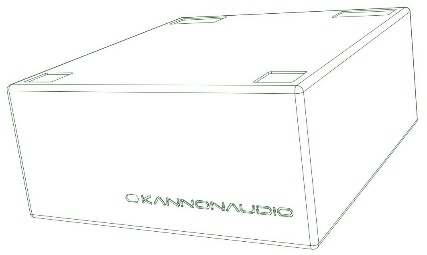

Accessories
- Spacer
- Model803S
- Model805S
- Model800A Hi

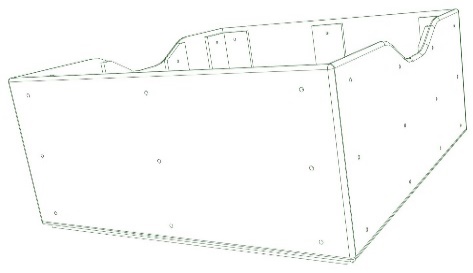

- Model801 Model802 case

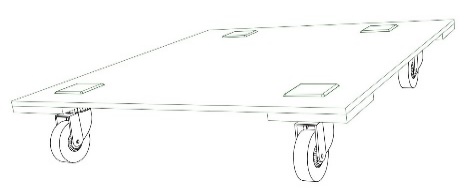

- Wheel board
Original drawings & downloads

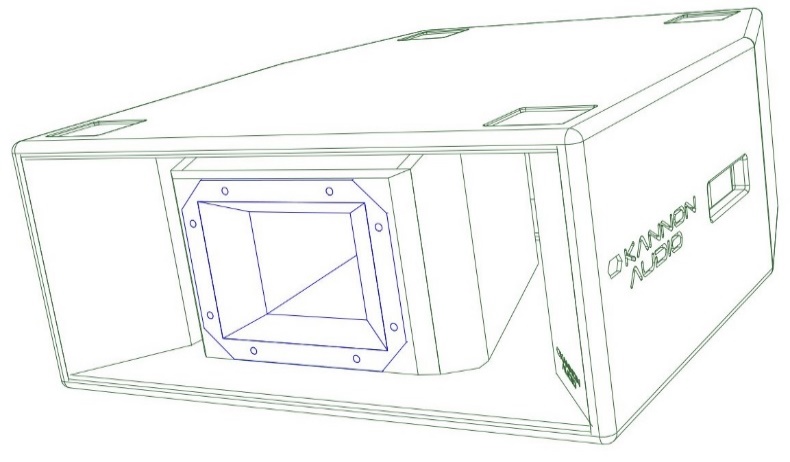

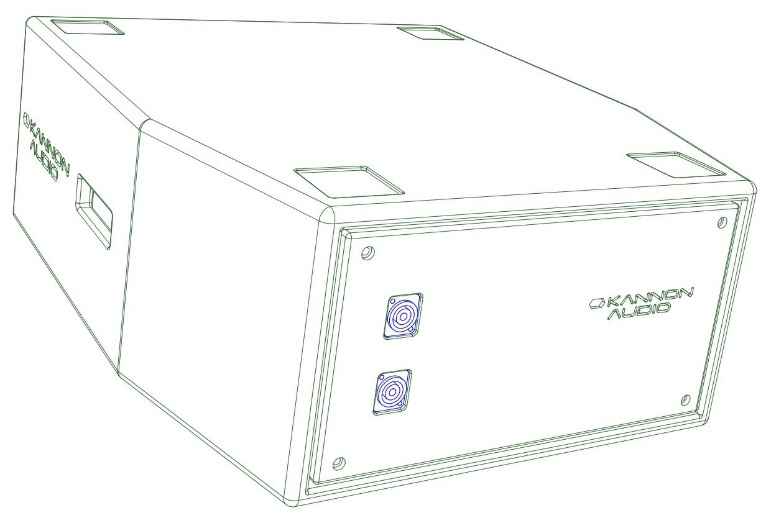

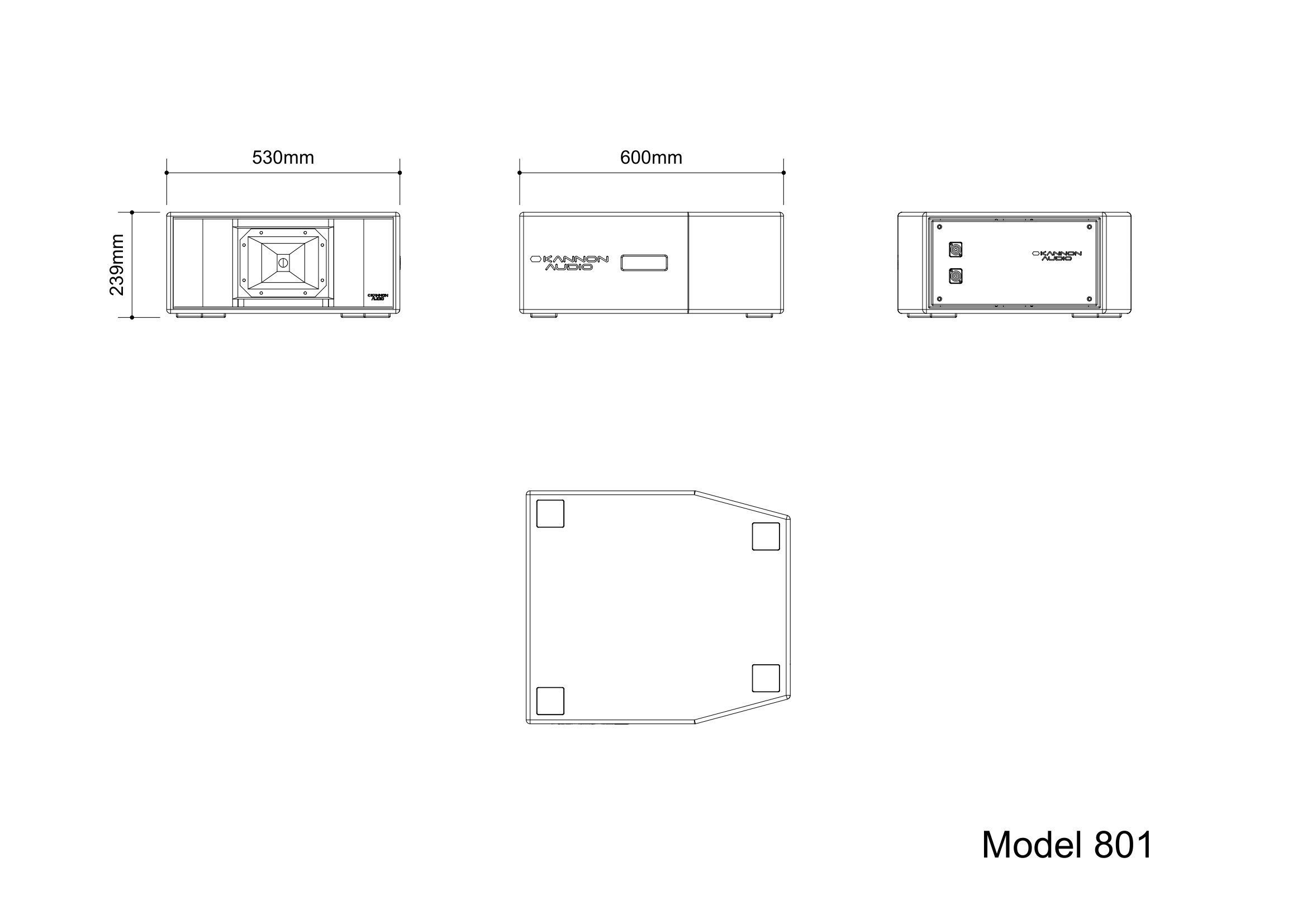

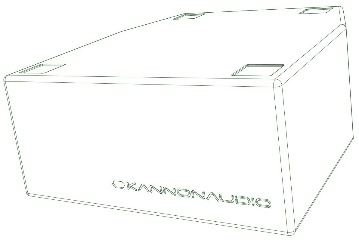

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model801”. Confirm the specification for your order with Kannonaudio.
