System 700 component

Model 718SW

Part of System 700. Installation speakers and compact party systems for music bars, lounges, small clubs and smaller events.

Discuss Model 718SW Hear a system →

Model 718SW primary design view — Design view · Open full size

Model718ASW

Product features

Active sub woofer
18mm MDF enclosure
Uses a common NL4 connector

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
18”	35Hz-3kHz	1000w	8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	35Hz - 3kHz
Connectors	2 x NL4

System notes

Use with System700

Technical drawings

718ASWEx

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

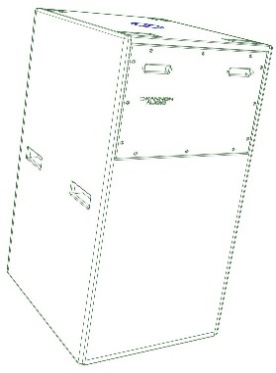

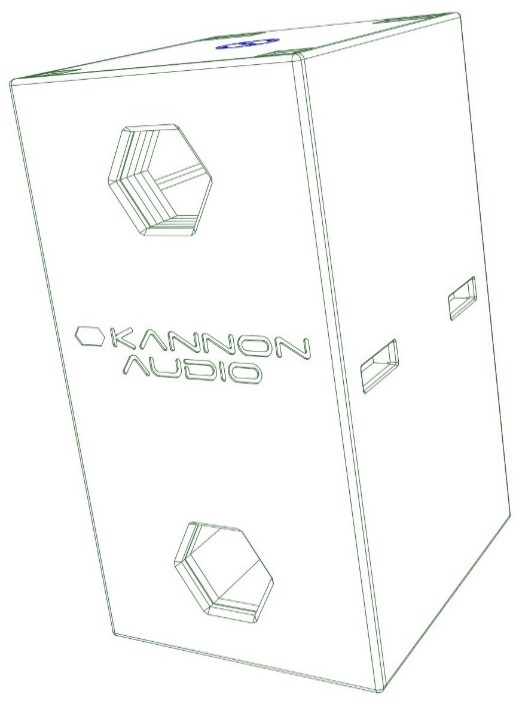

Model 718SW — cabinet design illustration, view 1 — Cabinet design illustration · View full size

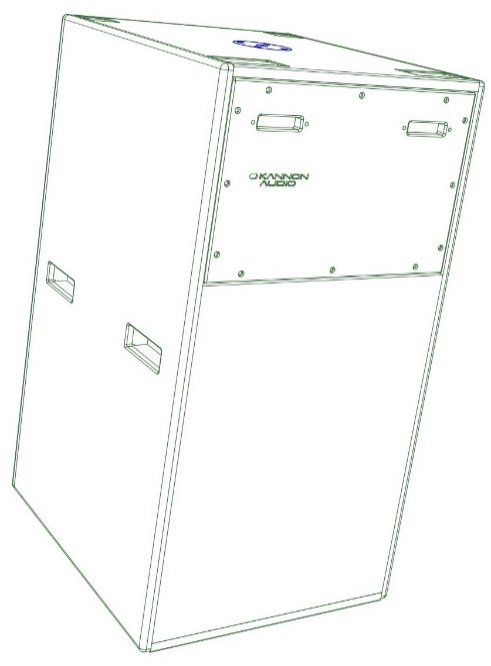

Model 718SW — cabinet design illustration, view 2 — Cabinet design illustration · View full size

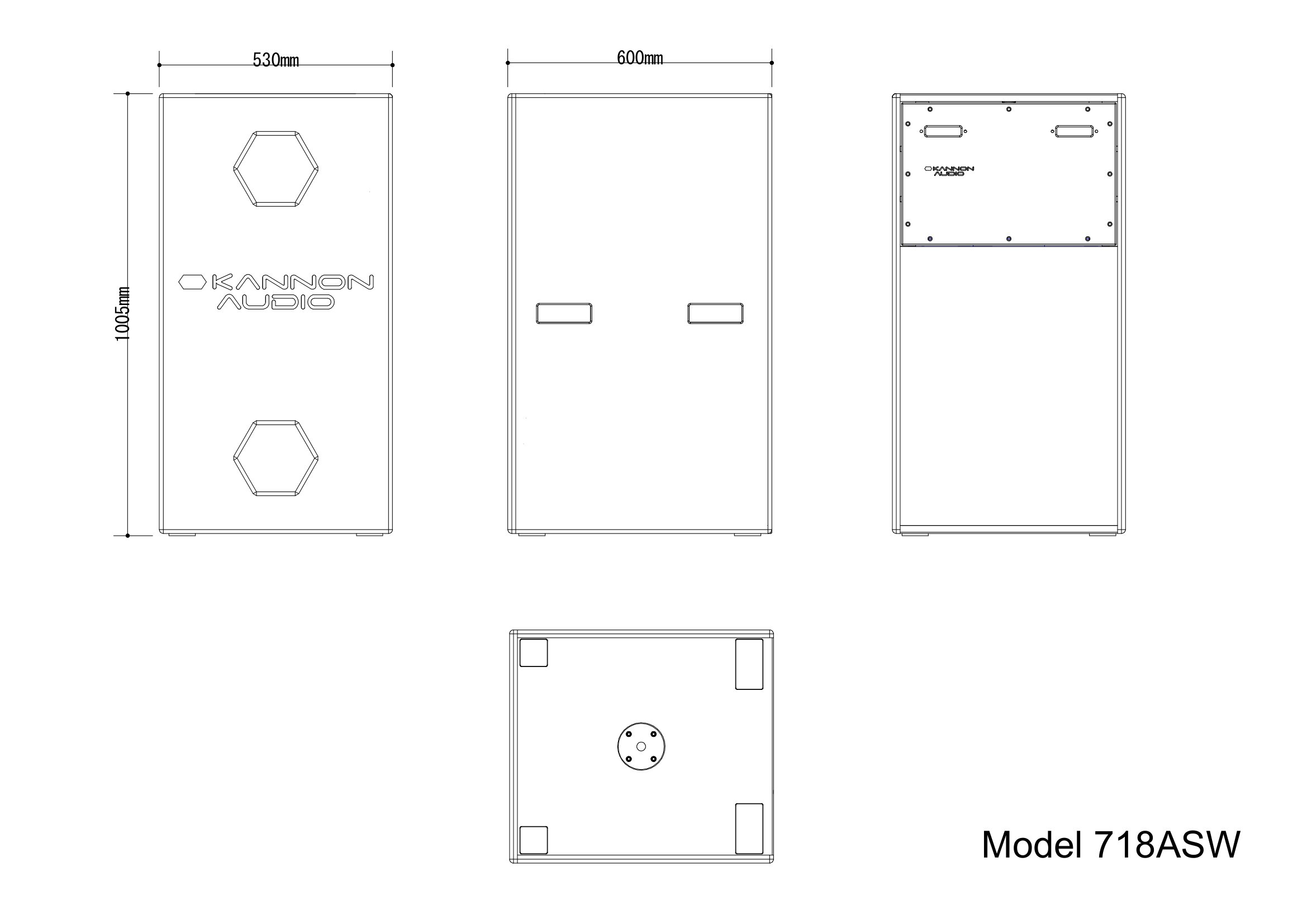

Model 718SW — technical drawing, view 3 — Technical drawing · View full size

Model 718SW — technical drawing, view 4 — Technical drawing · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model718SW”. Confirm the specification for your order with Kannonaudio.
