System 600 component
Model 615A
Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.
Product features
- Active sub woofer
- Achieves weight reduction using 15mm and 18mm plywood
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 15” | 35Hz-3kHz | 1000w | 8Ohm |
Scroll sideways to see all specifications.
| Frequency response | 35Hz - 3kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |

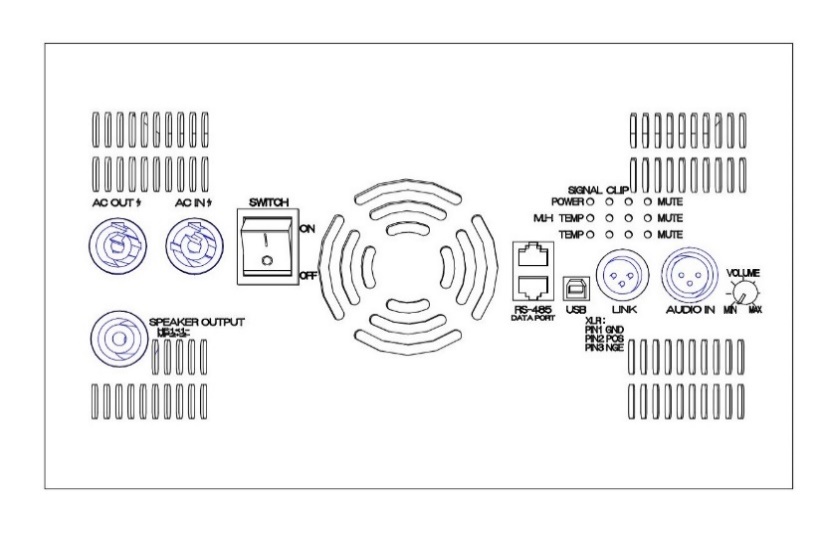

Amplifier specifications
Scroll sideways to see all specifications.
| 8Ω Stereo Power | L:1500W+M:500W+H:500W |
|---|---|
| 4Ω Stereo Power | L:1800W+M:900W+H:900W |
| Frequency Response | 20Hz-20KHz ±1dB |
| THD+N 1KHz 1W 8Ω | <0.1% |
| Signal to Noise Ratio 1KHz | >100dB |
| Channel Separation 1KHz | >80dB |
| Class | D |
| Protection | Short, DCP, OVP, UVP, OCP, OTP |
| Operating Voltage | 110V version: 90V-135V / 220V versioin: 180V-265V |
| input Sensitivity | 1V |
| Input Impedance | 20KΩ |
| DSP Fuction | MUTE, Polarity, Gain, Delay, Limiter, EQ, Xover, AFP |
| DSP Control | USB and RS-485 |
System notes
Use with Model607 Model608
Accessories

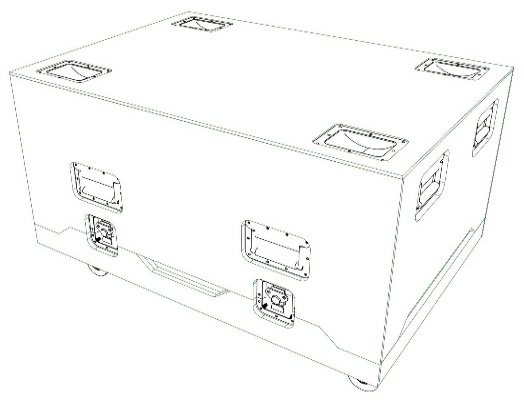

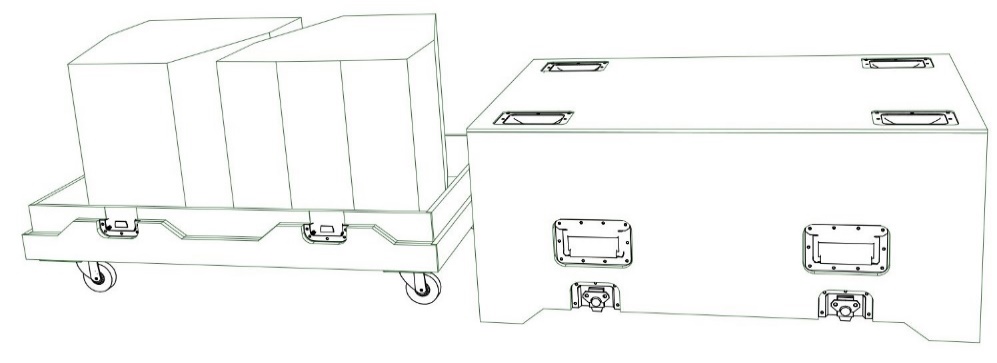

- Flight case
Original drawings & downloads

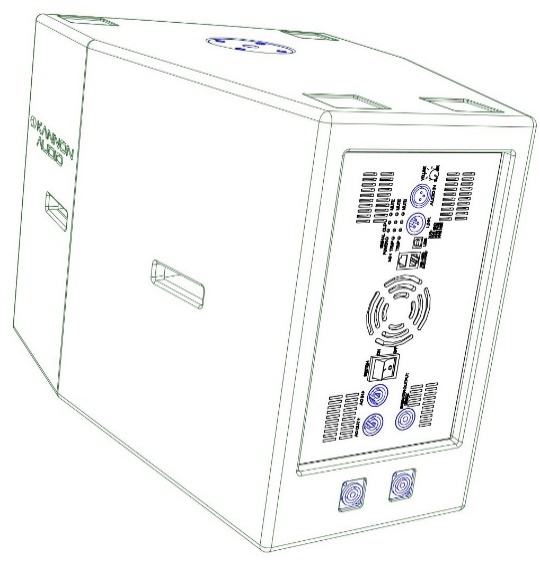

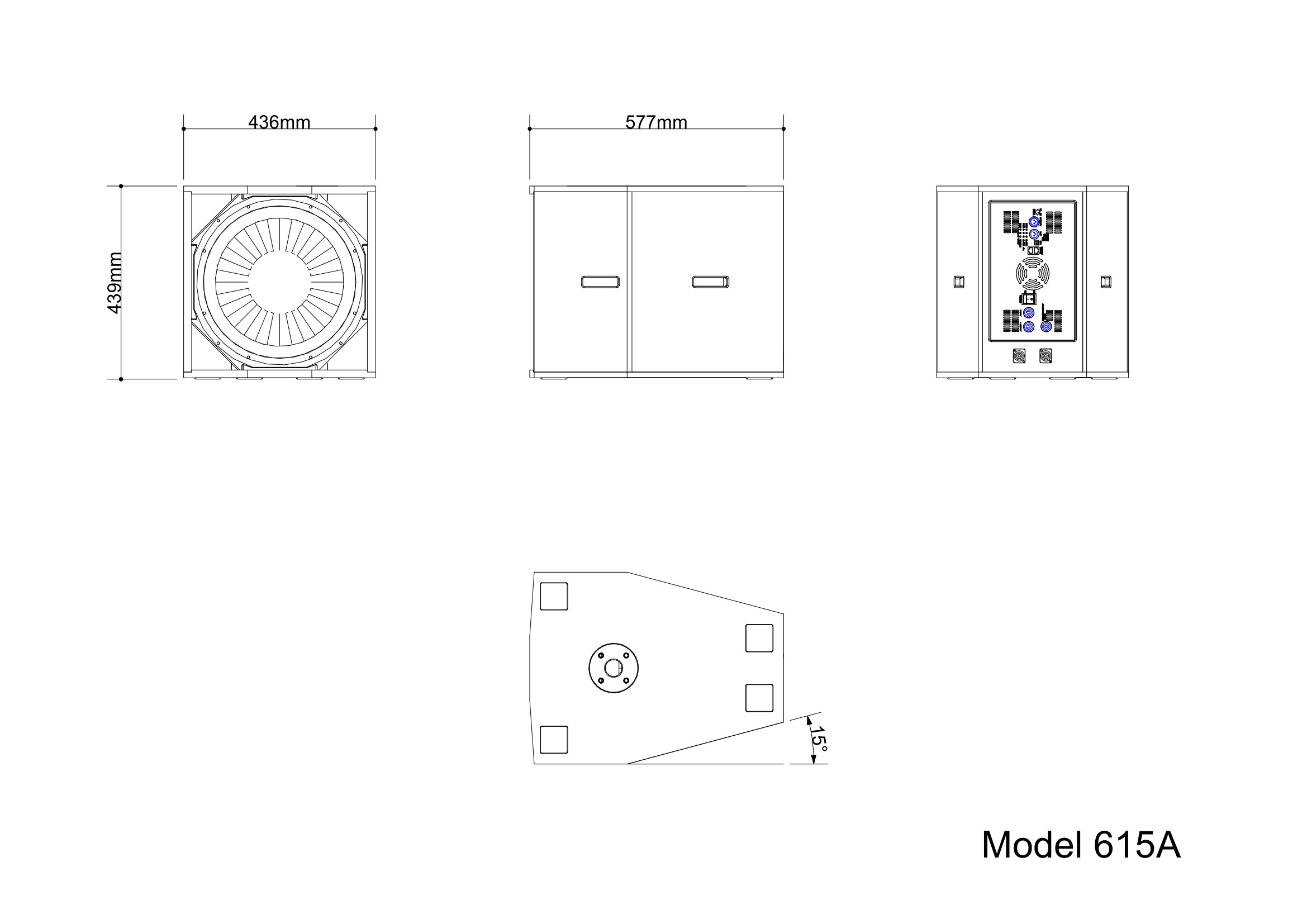

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model615A”. Confirm the specification for your order with Kannonaudio.
