System 600 component

Model 615ASWEx

Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.

Discuss Model 615ASWEx Hear a system →

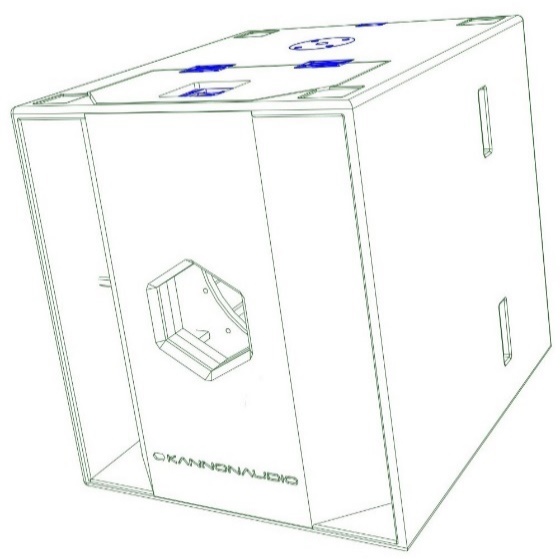

Model 615ASWEx primary design view — Design view · Open full size

Product features

Active sub woofer
Achieves weight reduction using 15mm plywood
Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
15”	35Hz-3kHz	1000w	8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	80Hz - 3kHz
Connectors	2 x SpeakON* NL4

Technical drawings

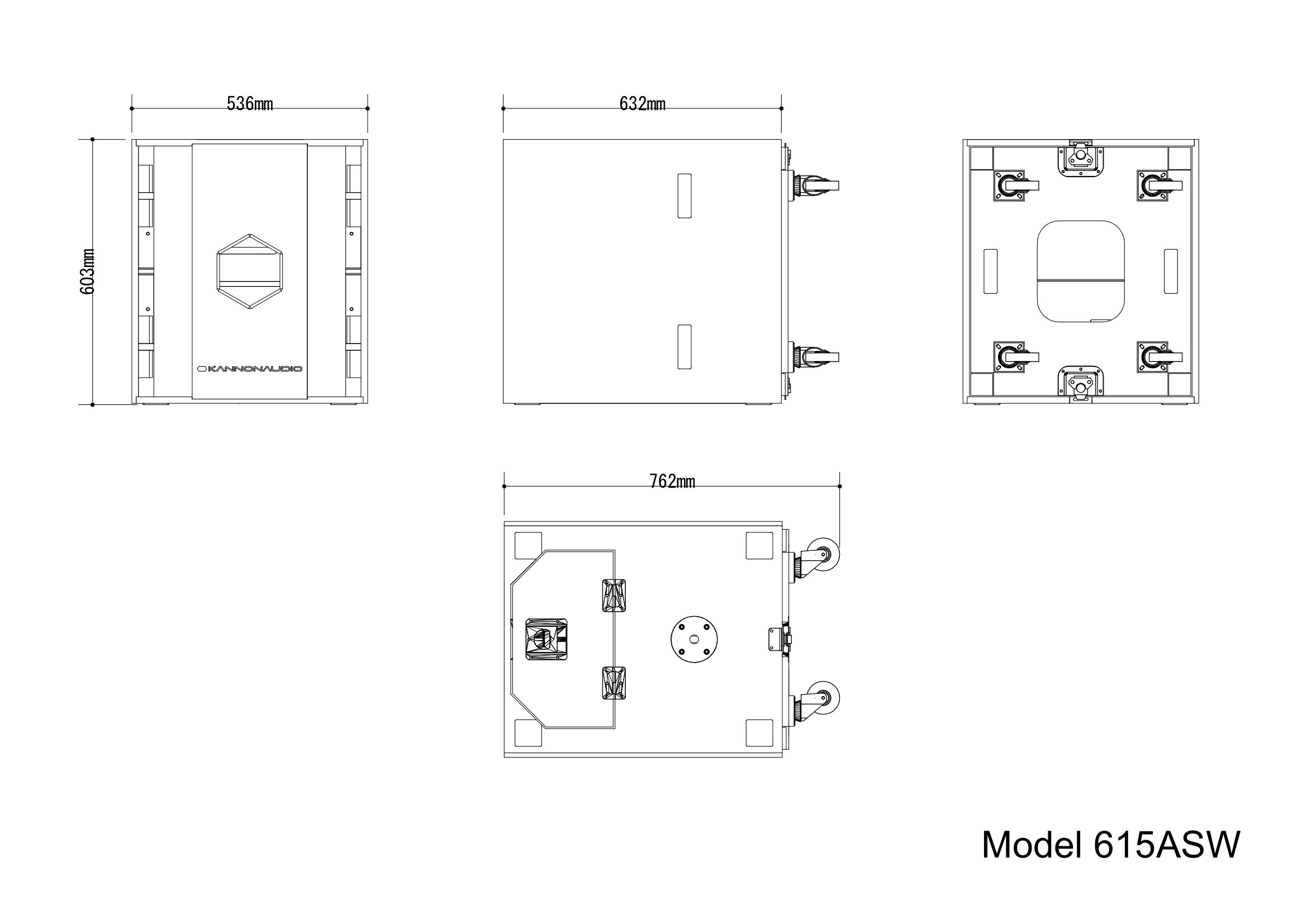

This drawing is for the Model 615ASW. There are no wheels and top opening/closing functions.

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 615ASWEx — cabinet design illustration, view 1 — Cabinet design illustration · View full size

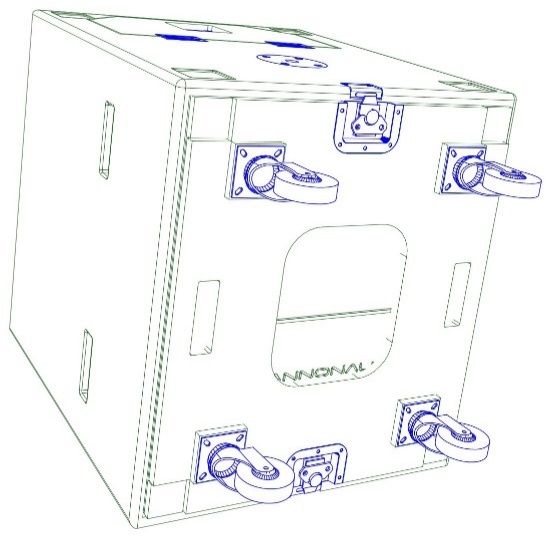

Model 615ASWEx — cabinet design illustration, view 2 — Cabinet design illustration · View full size

Model 615ASWEx — technical drawing, view 3 — Technical drawing · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model615ASWEx”. Confirm the specification for your order with Kannonaudio.
