System 600 component
Model 608M
Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.
Product features
- Active model
- Achieves weight reduction using 15mm plywood
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 8" | 80Hz-10kHz | 300W×2 | 8Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 80Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |
| Weight | 30kg |

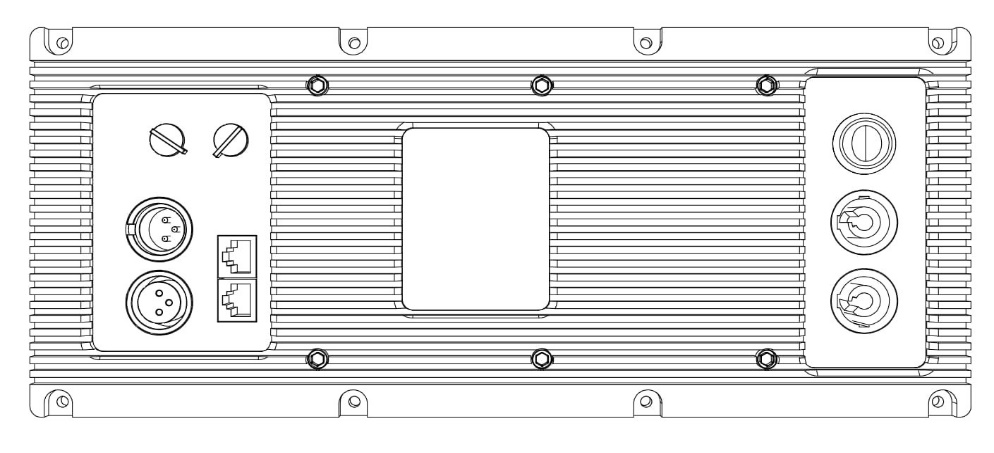

Amplifier specifications
Scroll sideways to see all specifications.
| 8Ω Stereo Power | 200W×1 800W×1 |
|---|---|
| 4Ω Stereo Power | 300W×1 120W×1 |
| Frequency Response | 20Hz-20KHz ±1dB |
| THD+N 1KHz 1W 8Ω | <0.1% |
| Signal to Noise Ratio 1KHz | >109dB |
| Channel Separation 1KHz | >70dB |
| Class | D |
| Protection | Short, DCP, OVP, UVP, OCP, OTP |
| Operating Voltage | 115V version: 90V-135V / 220V versioin: 180V-265V |
| input Sensitivity | 0.77V |
| Input Impedance | 20KΩ |
| DSP Fuction | MUTE, Polarity, Gain, Delay, Limiter, EQ, Xover, AFP |
| DSP Control | RS-485 |
System notes
Model615A Model615AEx
Accessories

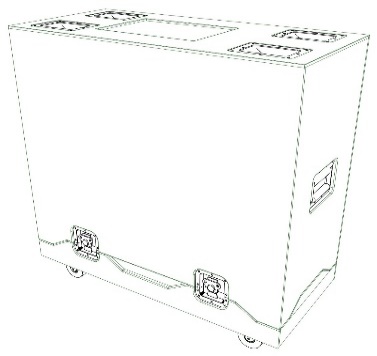

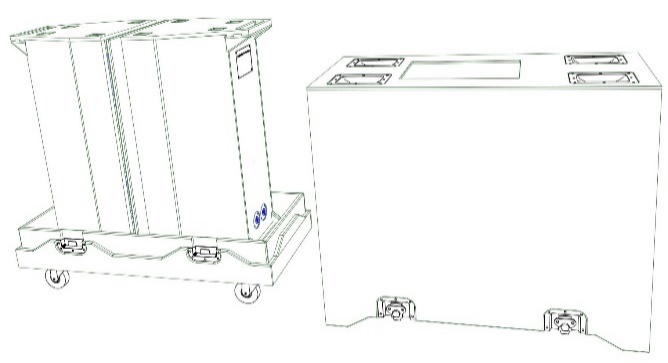

- Flight case
Original drawings & downloads

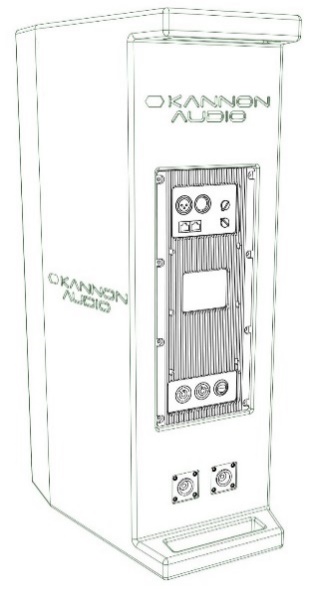

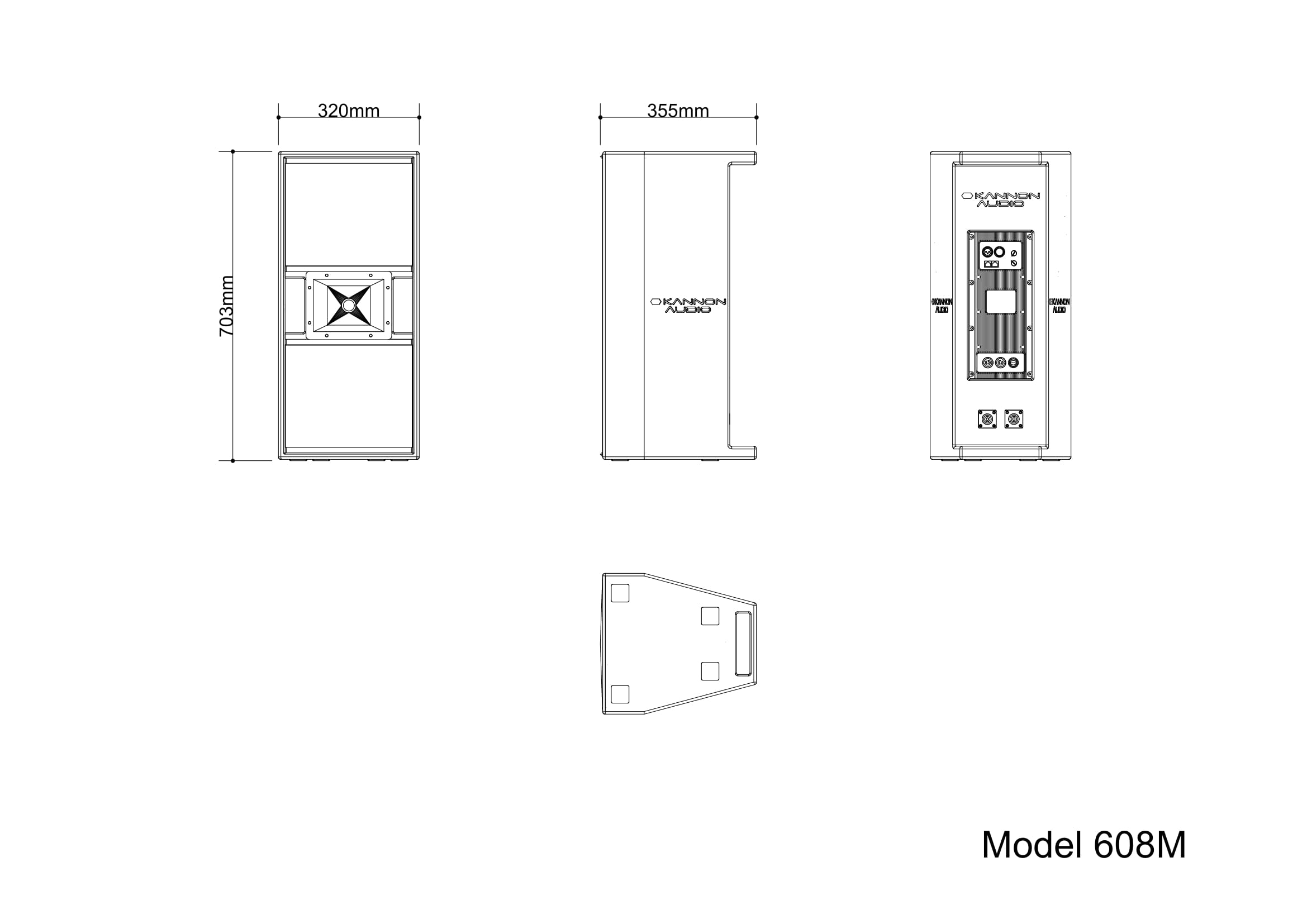

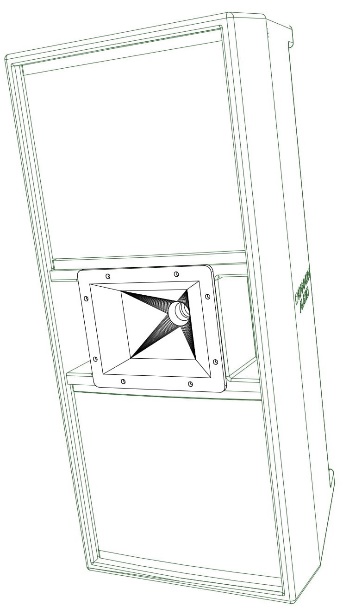

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model608M”. Confirm the specification for your order with Kannonaudio.
