System 600 component

Model 607

Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.

Discuss Model 607Hear a system →

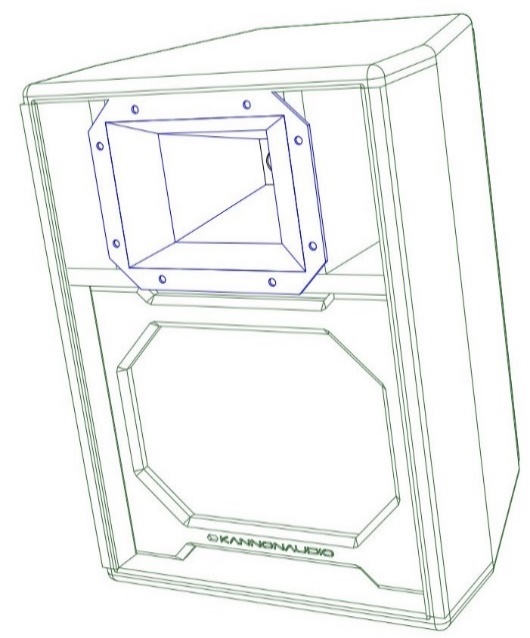

Model 607 primary design view
Design view · Open full size

Product features

  • Achieves weight reduction using 15mm plywood
  • Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
8"80Hz-10kHz200W8Ohm
1”1kHz-20kHz50w16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response80Hz - 20kHz
Connectors2 x SpeakON* NL4

System notes

Use with Model615A

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

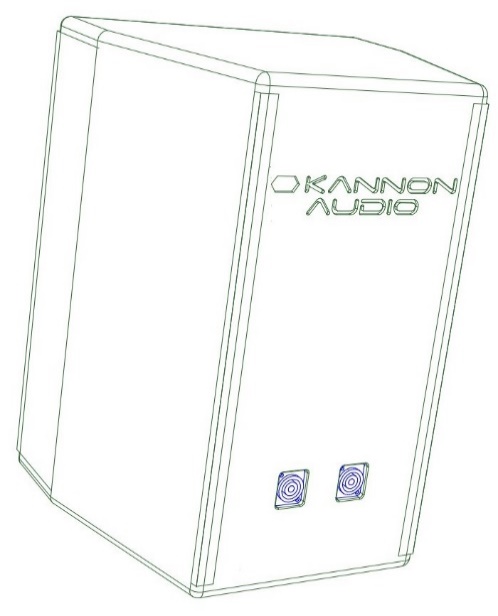

Model 607 — cabinet design illustration, view 1
Cabinet design illustration · View full size
Model 607 — cabinet design illustration, view 2
Cabinet design illustration · View full size

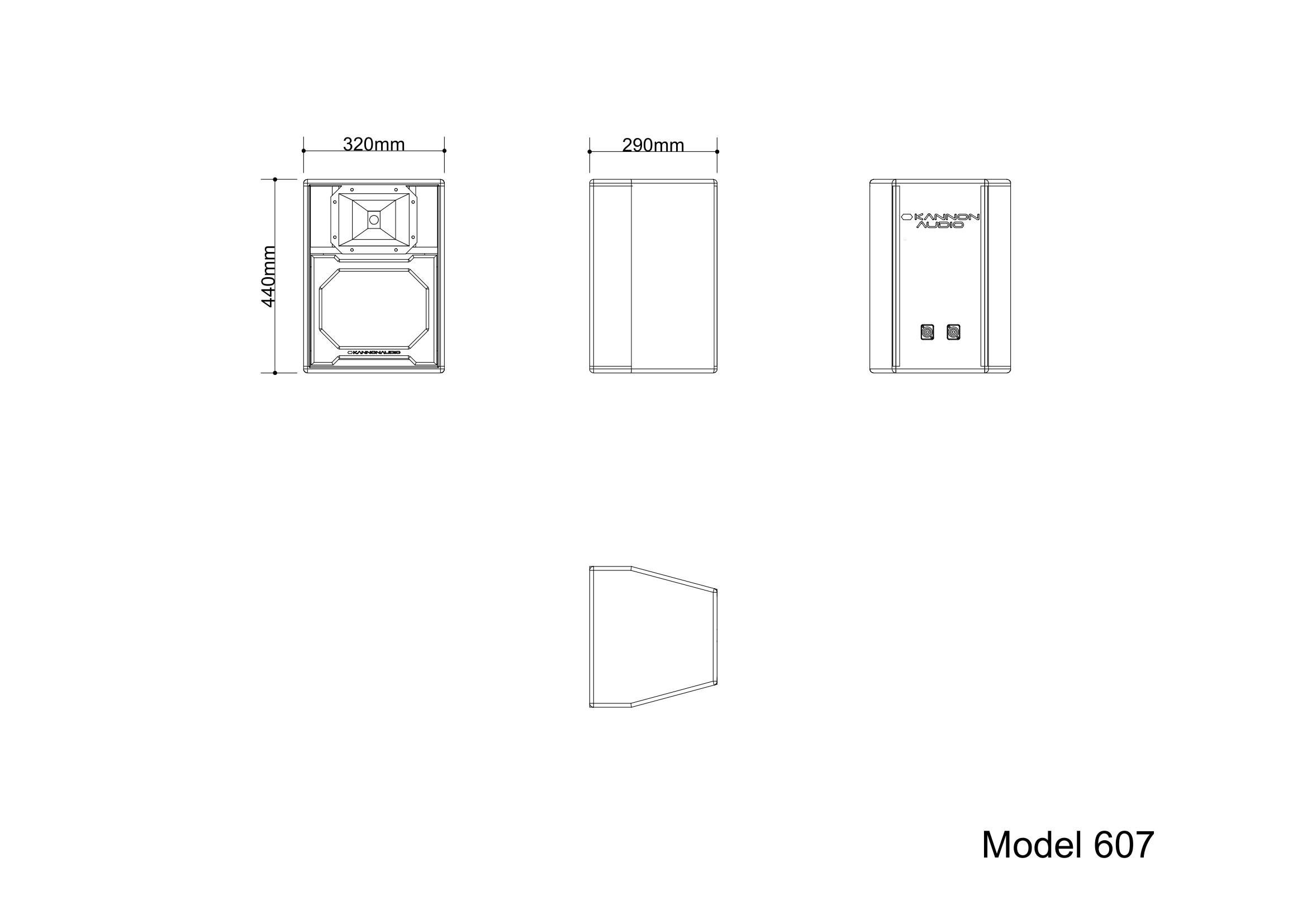

Model 607 — technical drawing, view 3
Technical drawing · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model607”. Confirm the specification for your order with Kannonaudio.
