System 600 component
Model 606
Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.
Product features
- Active design with amplifier on sub low
- Achieves weight reduction using 12mm plywood
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 5" | 120Hz-10kHz | 100W×2 | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 120Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |
System notes

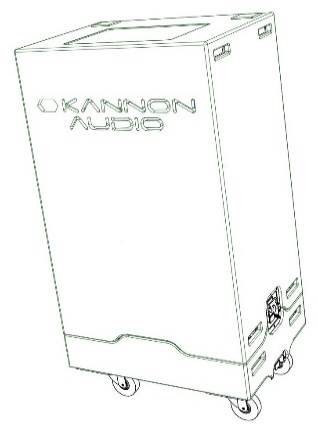

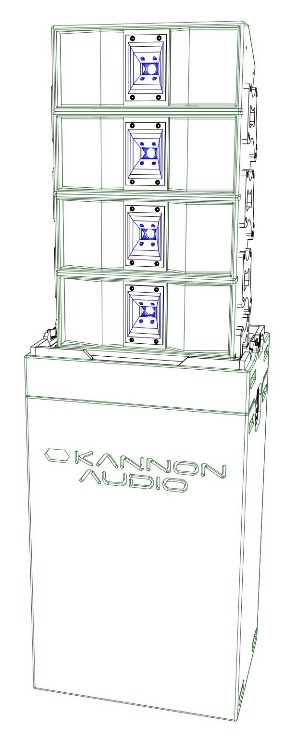

Adopting a mechanical structure in which the flight case can be used as a stacking base, it reduces the amount of luggage during transportation and enables a variety of stacking arrangements at the venue. Use with Model615ASW.
Accessories
- Flight case
Original drawings & downloads

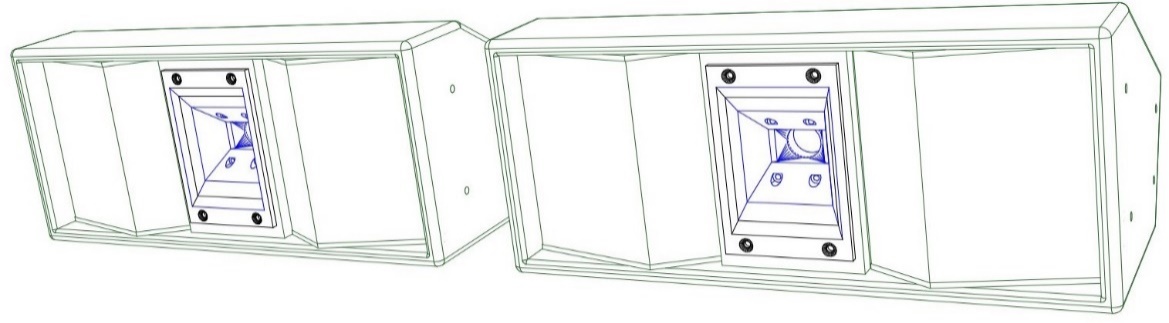

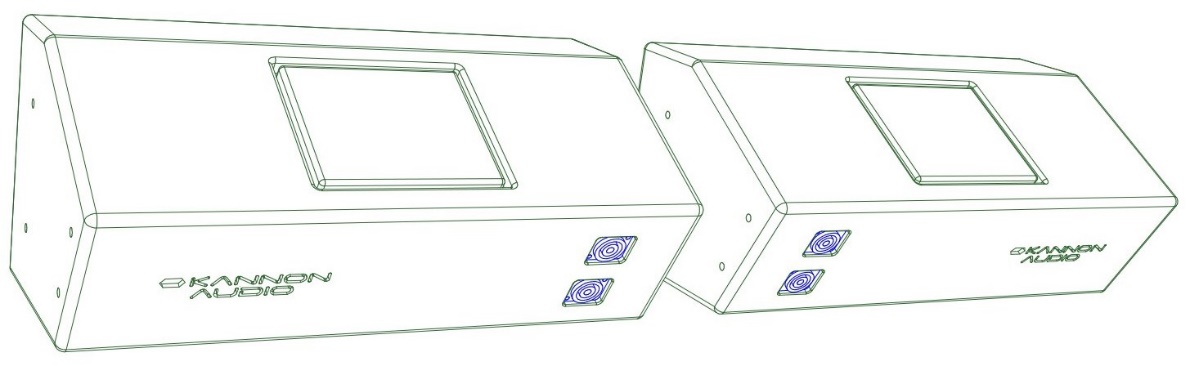

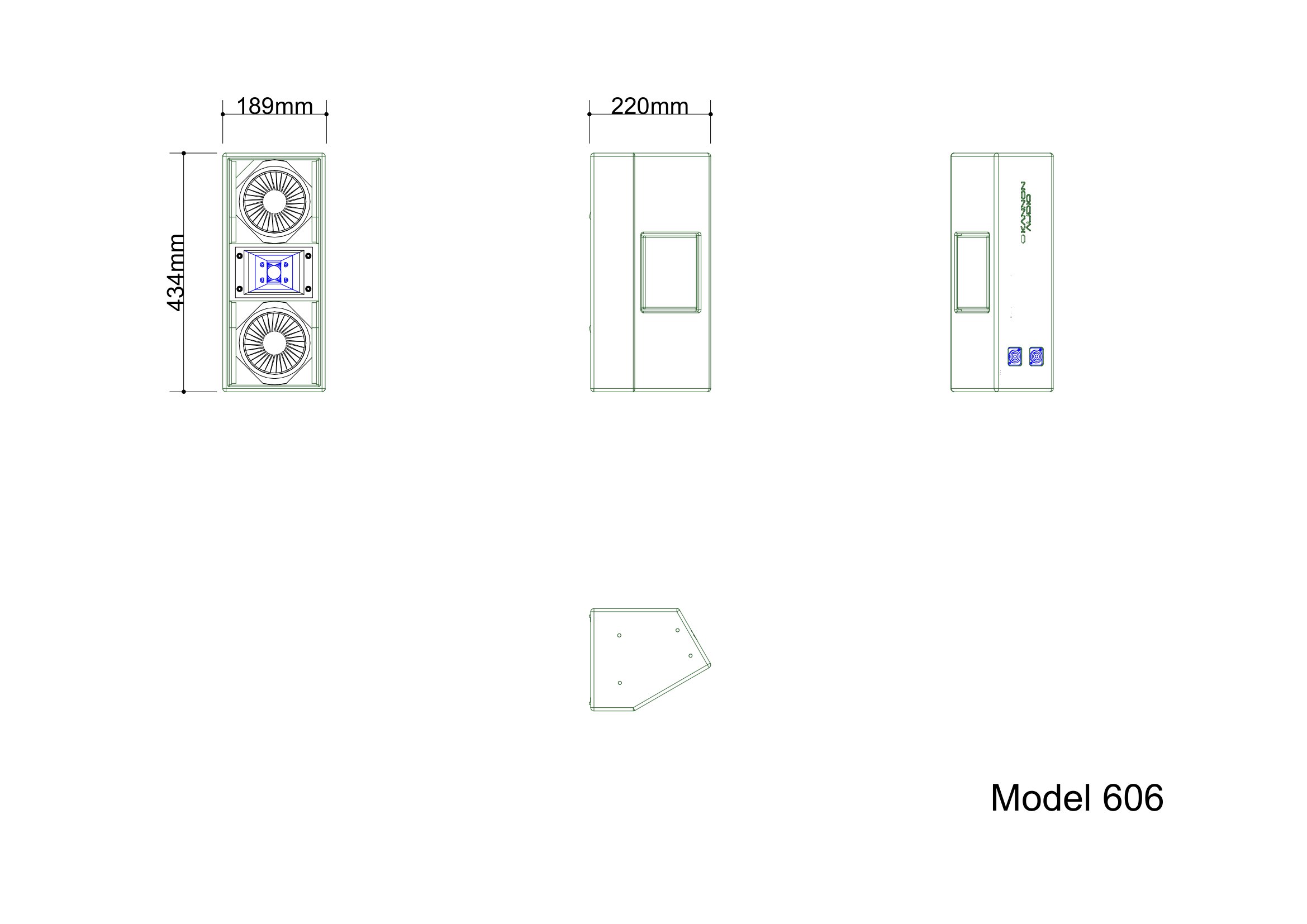

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model606”. Confirm the specification for your order with Kannonaudio.
