System 600 component
Model 605
Part of System 600. Compact sound systems and dedicated DJ monitors, with active subwoofer and amplifier options in the catalogue.
Product features
- Active design with amplifier on sub low
- Achieves weight reduction using 12mm plywood
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 5" | 120Hz-10kHz | 100W×2 | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 120Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |
System notes
Model615AWS can store one Model605 inside its speaker body, allowing owners to easily transport the sound system for small parties in their own cars. Use with Model615ASW.
Original drawings & downloads
Drawings and views

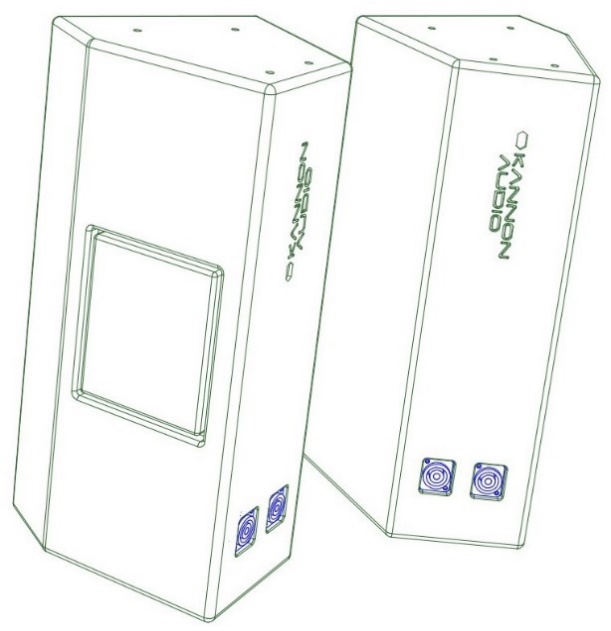

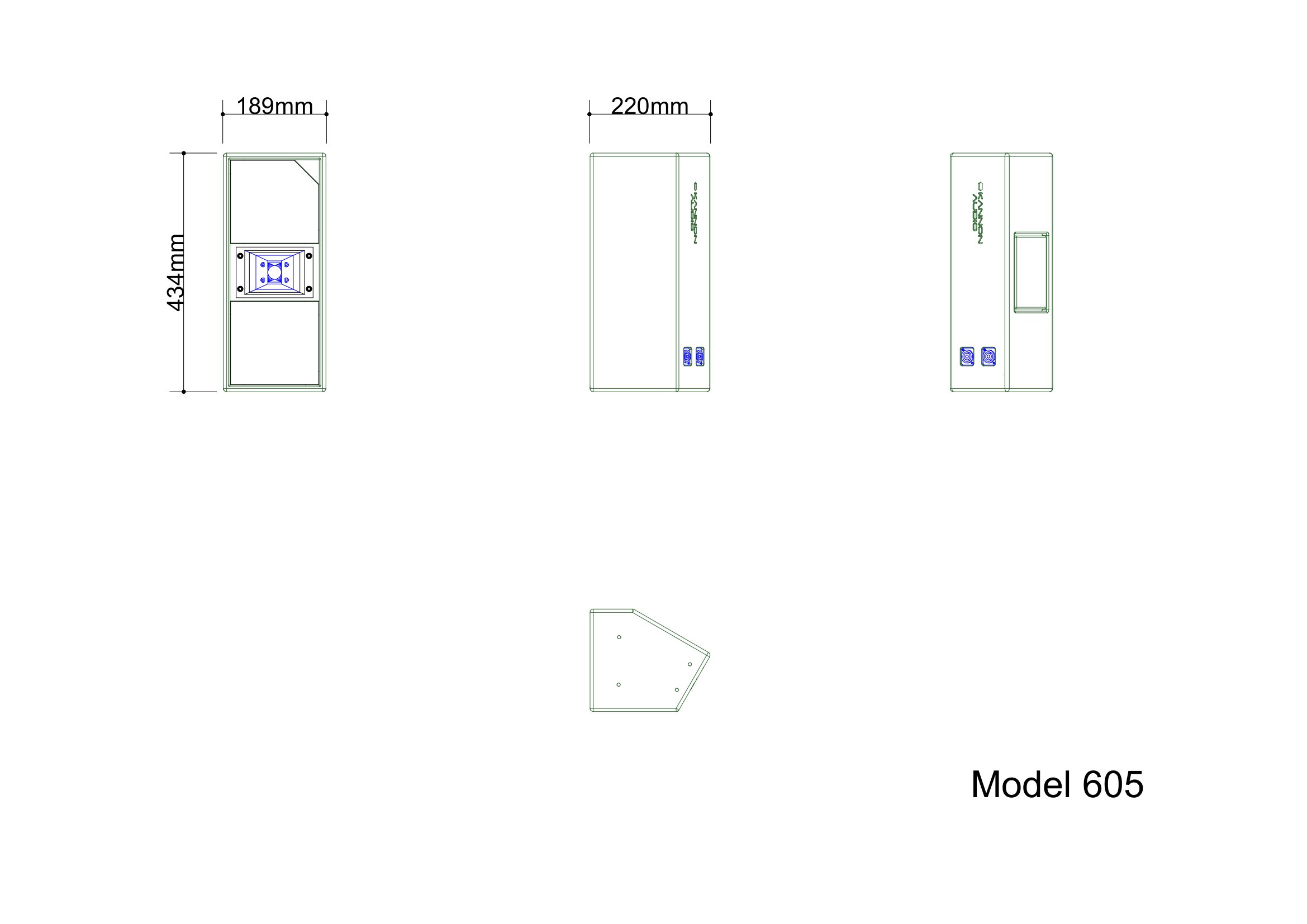

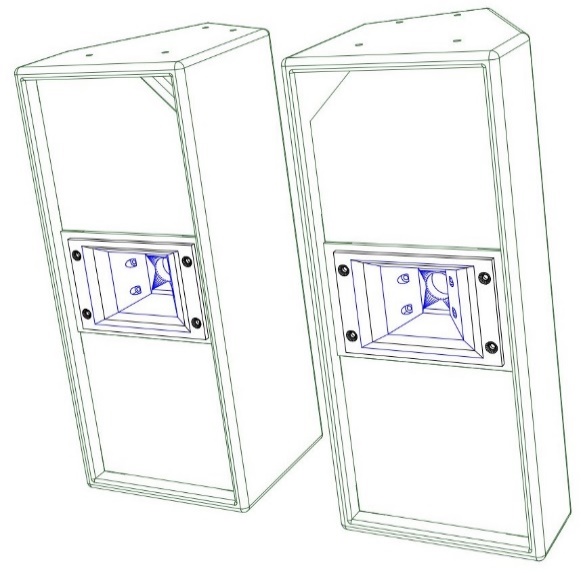

Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model605”. Confirm the specification for your order with Kannonaudio.
