System 200 component
Model 204M
Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.
Model204Ex-M
Product features
- 12mm plywood enclosure
- Low weight Neodymium magnets throughout
- Neutrik speakON* NL8 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 5" | 240Hz-10kHz | 100W×2 | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 250Hz - 20kHz |
|---|---|
| Connectors | 2 x SpeakON* NL8 |
System notes

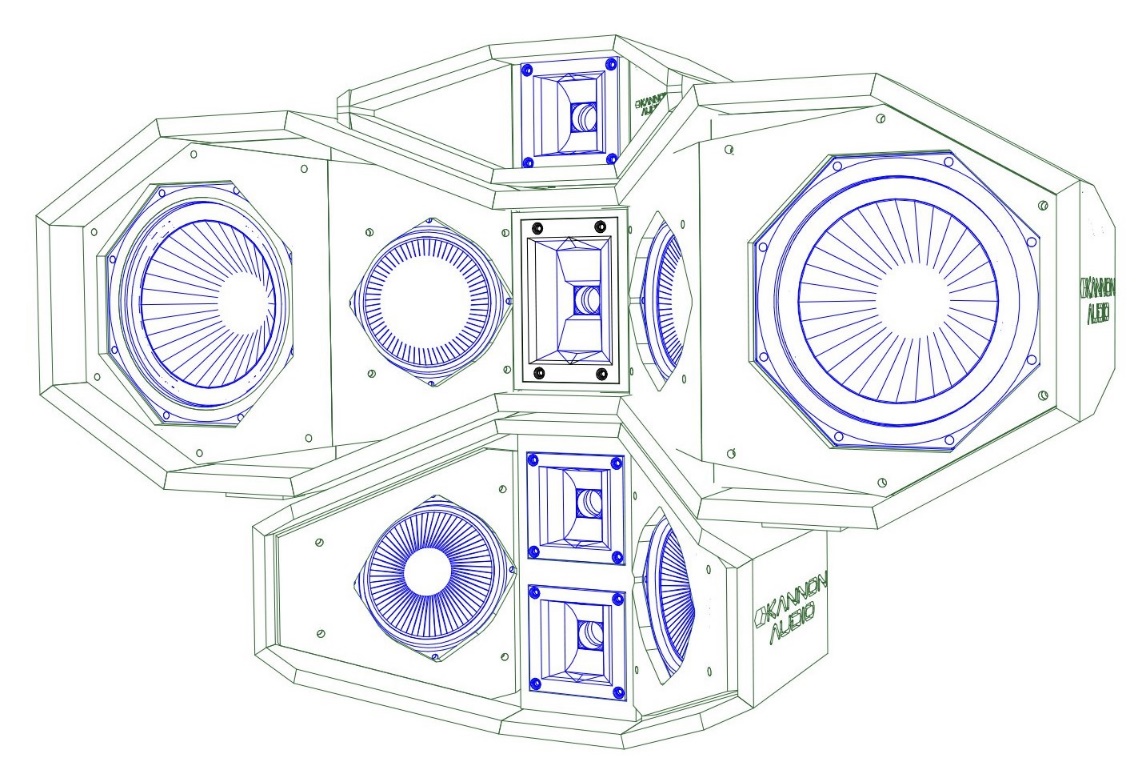

Use with Model204
Accessories
- Flight case
Original drawings & downloads

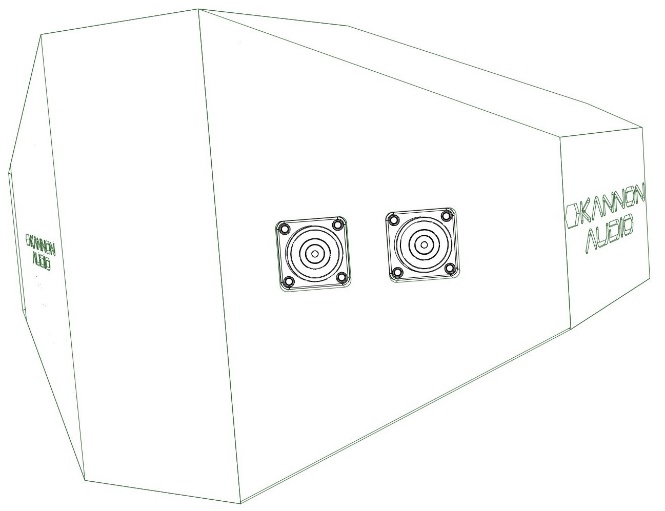

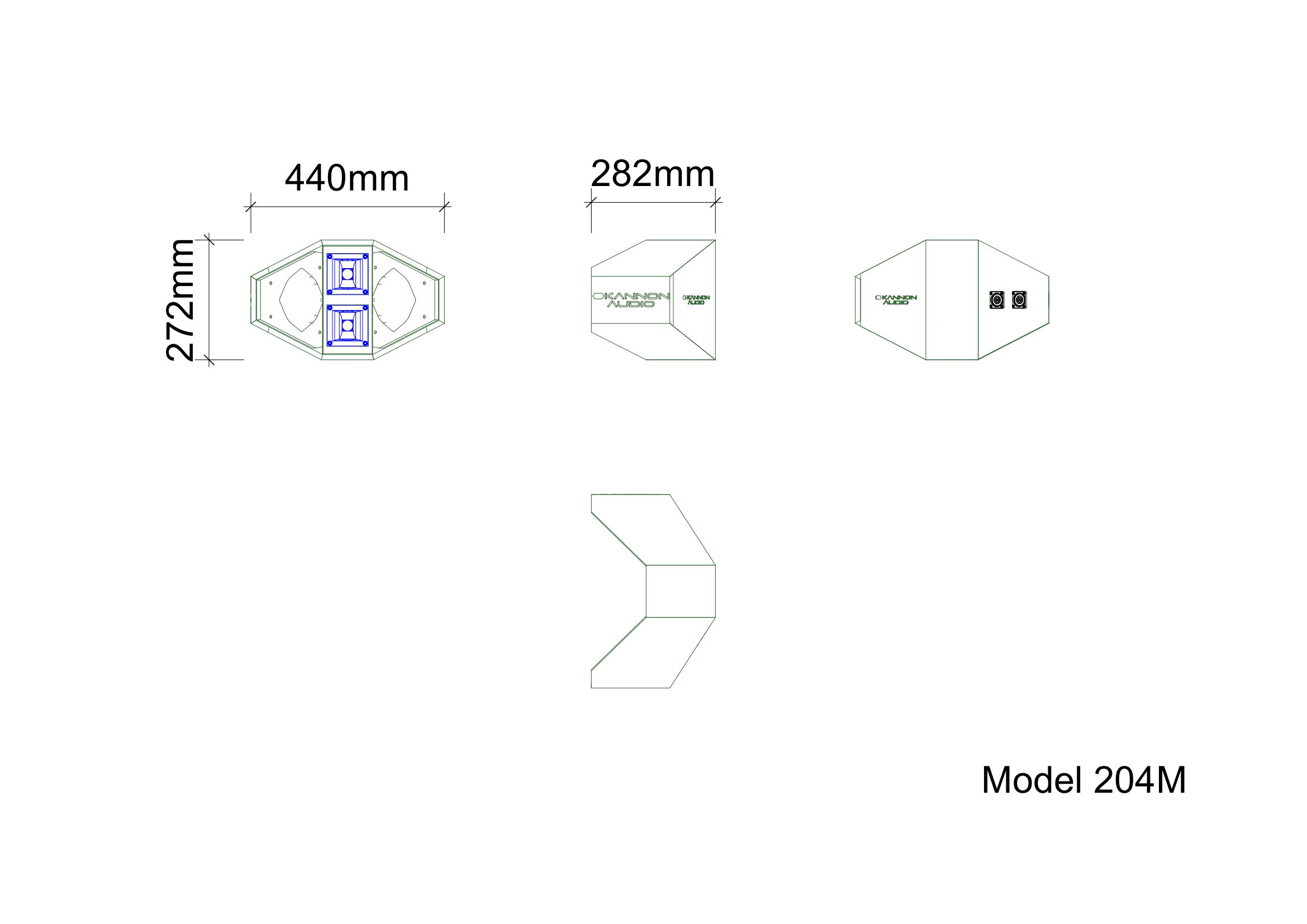

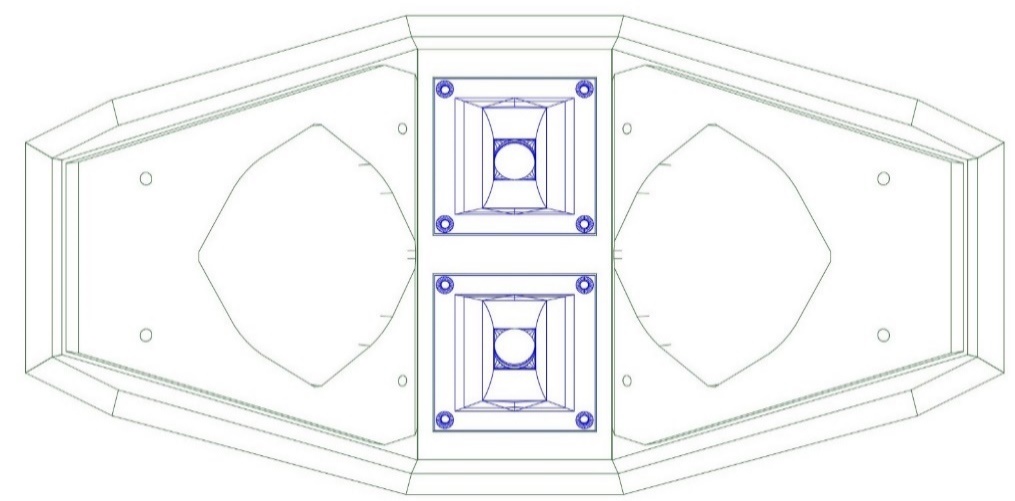

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model204M”. Confirm the specification for your order with Kannonaudio.
