System 200 component

Model 203

Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.

Discuss Model 203Hear a system →

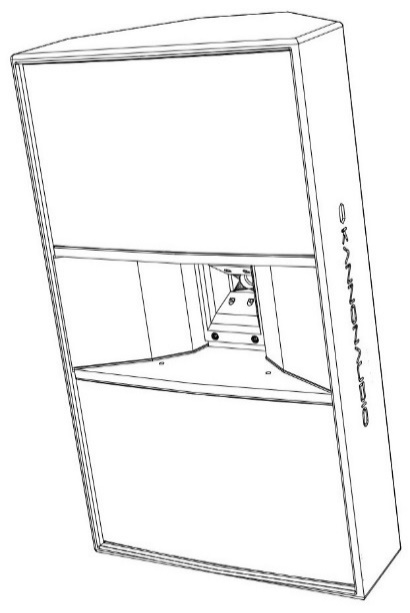

Model 203 primary design view
Design view · Open full size

Product features

  • Stand mount model
  • Near field speaker
  • 12mm plywood enclosure
  • Low weight Neodymium magnets throughout
  • Achieves weight reduction using 12mm plywood
  • Neutrik speakON* NL8 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
DriverFrequency characteristicPower (AES)Nominal Impedance
8"80Hz-4kHz200W×28Ohm
5"240Hz-10kHz100W×216Ohm
1”1kHz-20kHz50w16Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response80Hz - 20kHz
Connectors2 x SpeakON* NL8

System notes

Use with Model203B.

Accessories

  • Flight case

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 203 — cabinet design illustration, view 1
Cabinet design illustration · View full size

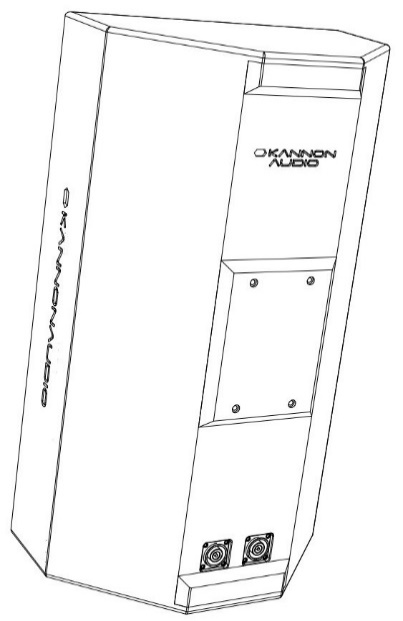

Model 203 — cabinet design illustration, view 2
Cabinet design illustration · View full size

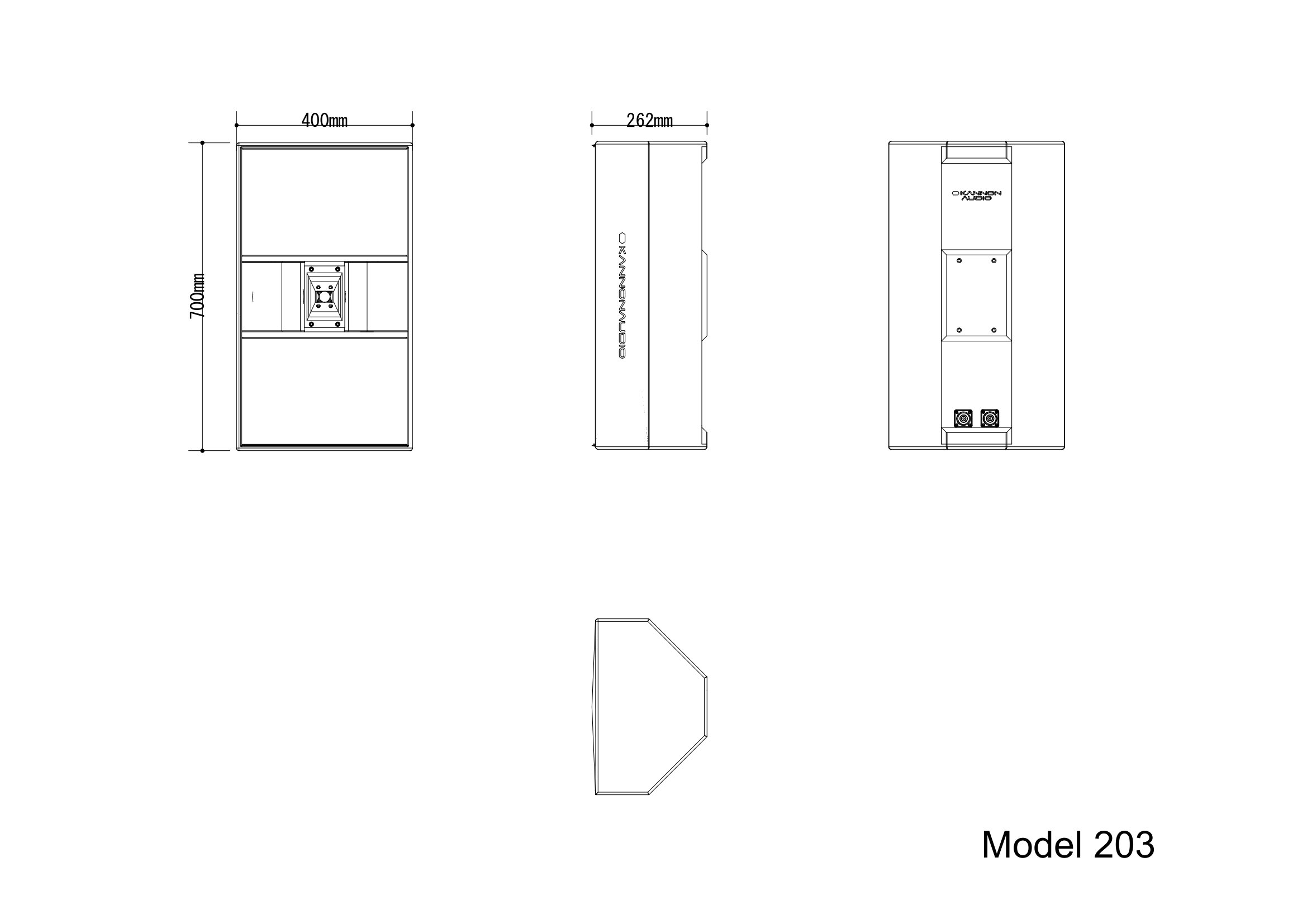

Model 203 — technical drawing, view 3
Technical drawing · View full size

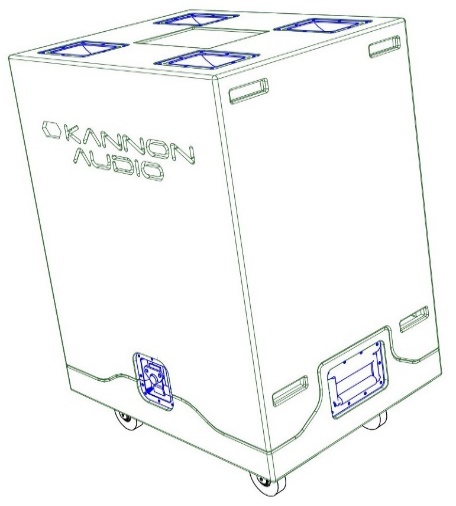

Model 203 — accessory illustration, view 4
Accessory illustration · View full size

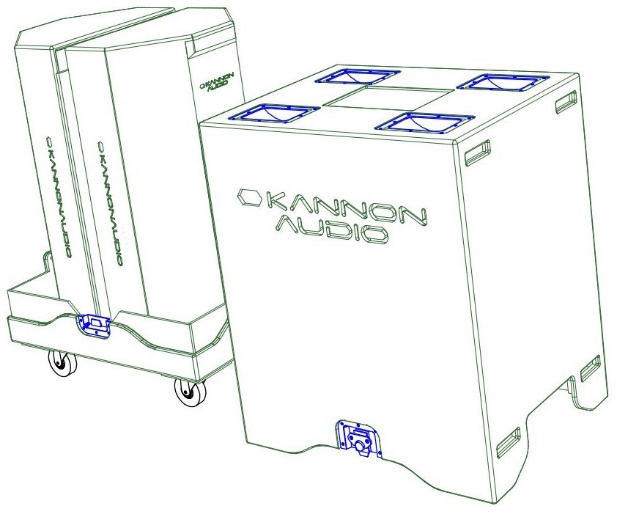

Model 203 — accessory illustration, view 5
Accessory illustration · View full size
Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model203”. Confirm the specification for your order with Kannonaudio.
