System 200 component

Model 201B

Part of System 200. Originally developed for vinyl DJs. A non-horn system for time-aligned surround layouts and stages shared by DJs and live performers.

Discuss Model 201B Hear a system →

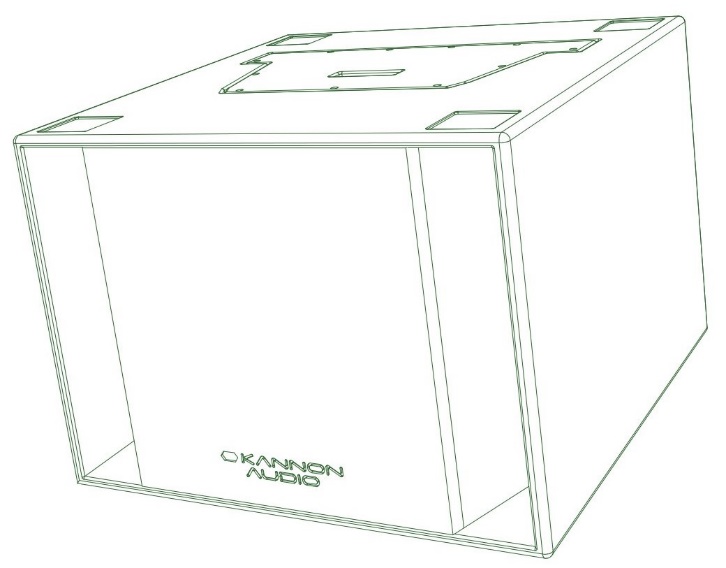

Model 201B primary design view — Design view · Open full size

Product features

Model201 and Model202 dedicated Sub woofer.
18mm plywood enclosure.
Neutrik speakON* NL4 connectors for reliable long life opeartion.

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
18"	35Hz-3.5kHz	2000W	8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	35Hz - 3.5Hz
Connectors	2 x SpeakON* NL4

System notes

Use with Model201 or Model202.

Accessories

Spacer

Original drawings & downloads

Product view · 201B B (PDF)
Product view · 201B F (PDF)
Dimensions · 201B (PDF)
Cabinet illustration · 201B (PDF)

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 201B — cabinet design illustration, view 1 — Cabinet design illustration · View full size

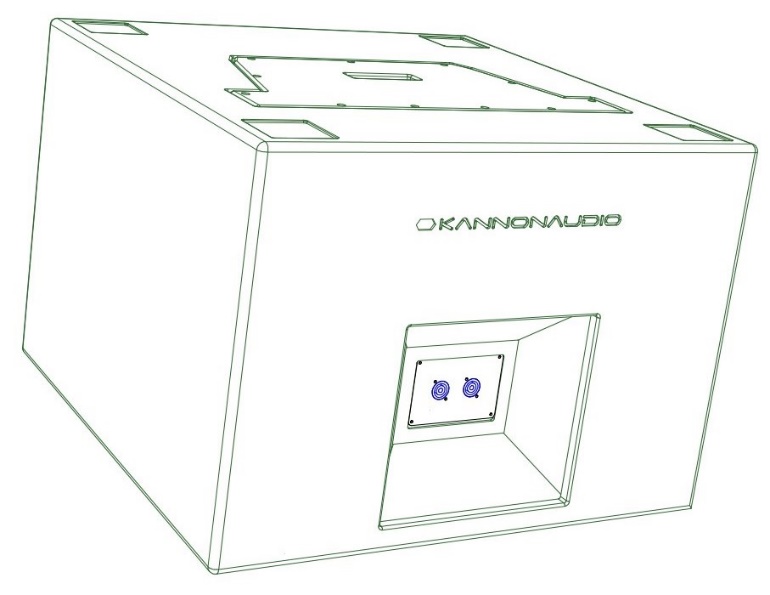

Model 201B — cabinet design illustration, view 2 — Cabinet design illustration · View full size

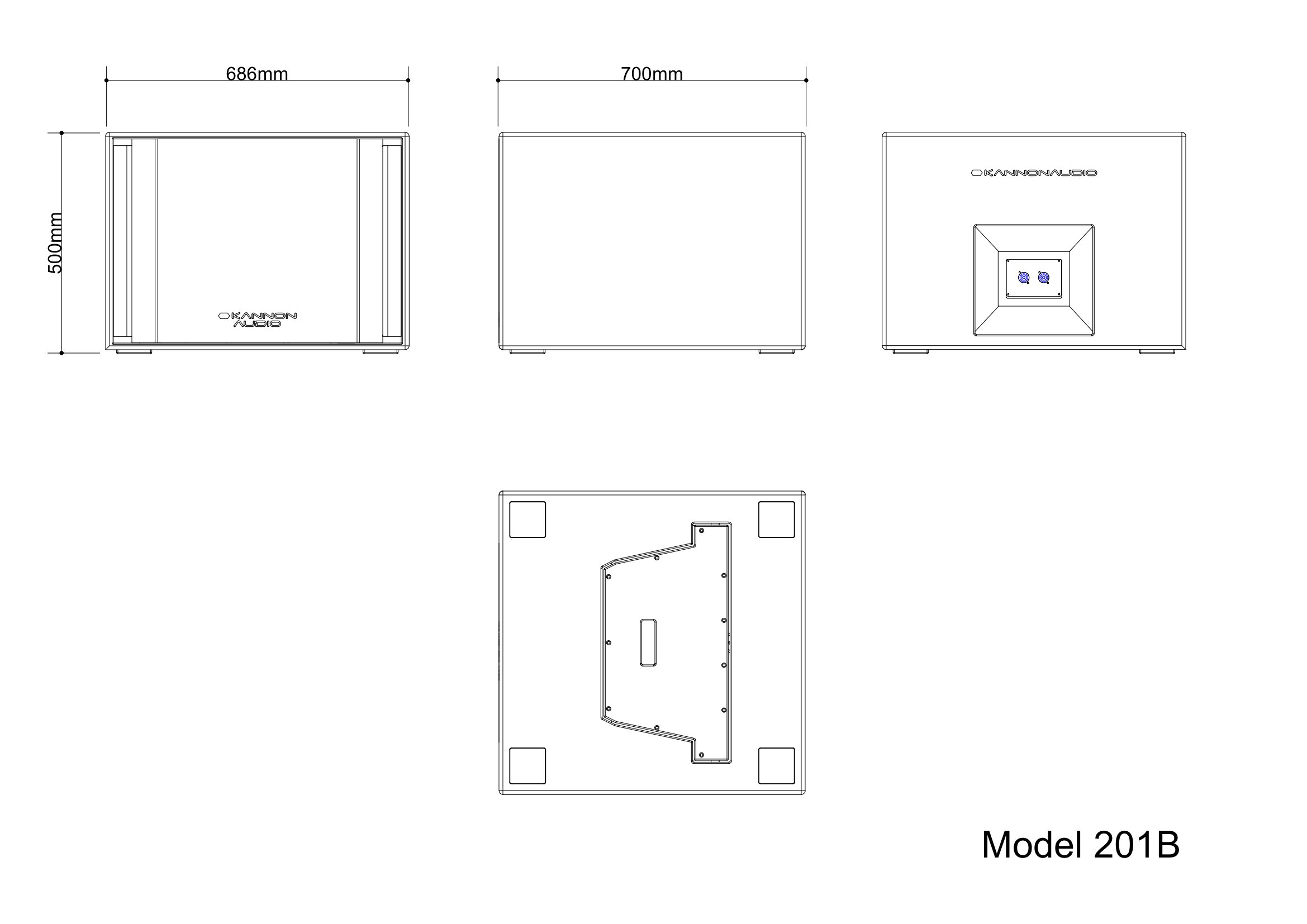

Model 201B — technical drawing, view 3 — Technical drawing · View full size

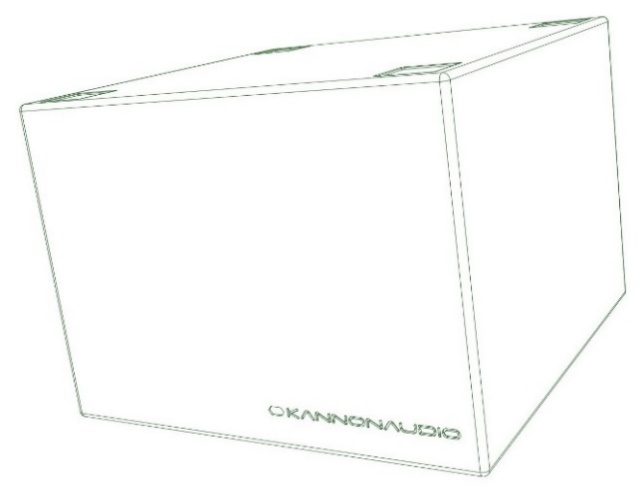

Model 201B — accessory illustration, view 4 — Accessory illustration · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model201B”. Confirm the specification for your order with Kannonaudio.
