System 100 component

Model 103

Part of System 100. A front-loaded horn system for large clubs and outdoor festivals, with touring and installation models.

Discuss Model 103 Hear a system →

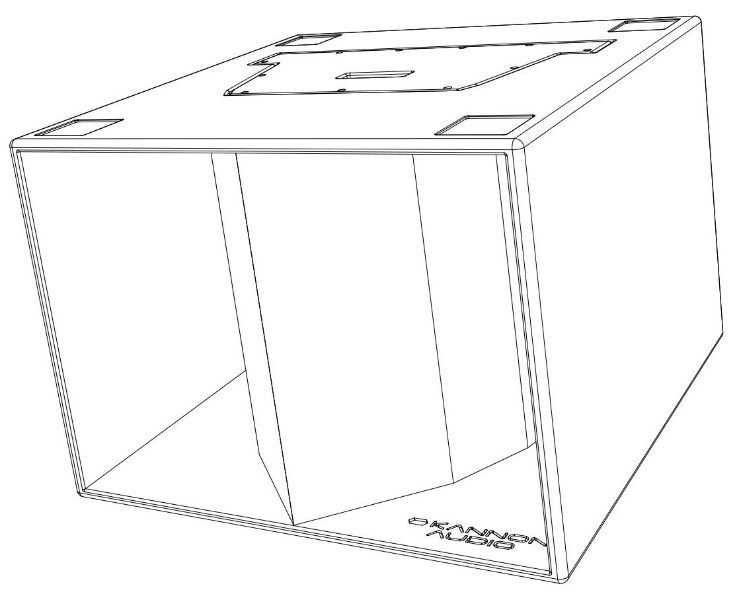

Model 103 primary design view — Design view · Open full size

Model103 Install

Product features

Lighter weight has been achieved by using 15mm and 18mm plywood
Low weight Neodymium magnets throughout
Neutrik speakON* NL4 connectors for reliable long life opeartion

Scroll sideways to see all specifications.

Driver specifications
Driver	Frequency characteristic	Power (AES)	Nominal Impedance
18"	35Hz-3.5kHz	1000w	8Ohm

Scroll sideways to see all specifications.

Specifications and configuration
Frequency response	35Hz - 3.5kHz
Connectors	2 x SpeakON* NL4

System notes

All System100 models are constructed with a closed back cabinet front load horn. Use with Model101 and Model102.

Accessories

Spacer

Original drawings & downloads

Drawings and views

Cabinet designs, technical drawings and accessory views. Open any image at full size.

Model 103 — cabinet design illustration, view 1 — Cabinet design illustration · View full size

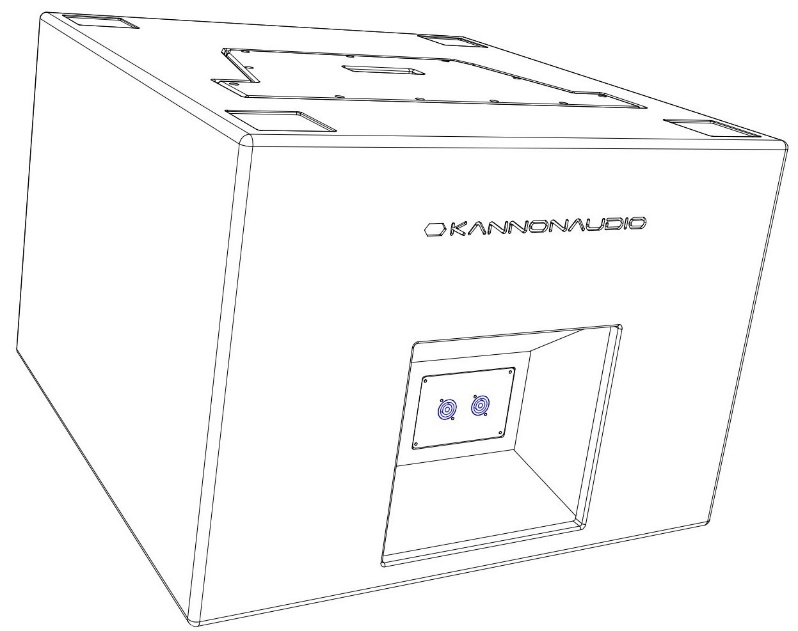

Model 103 — cabinet design illustration, view 2 — Cabinet design illustration · View full size

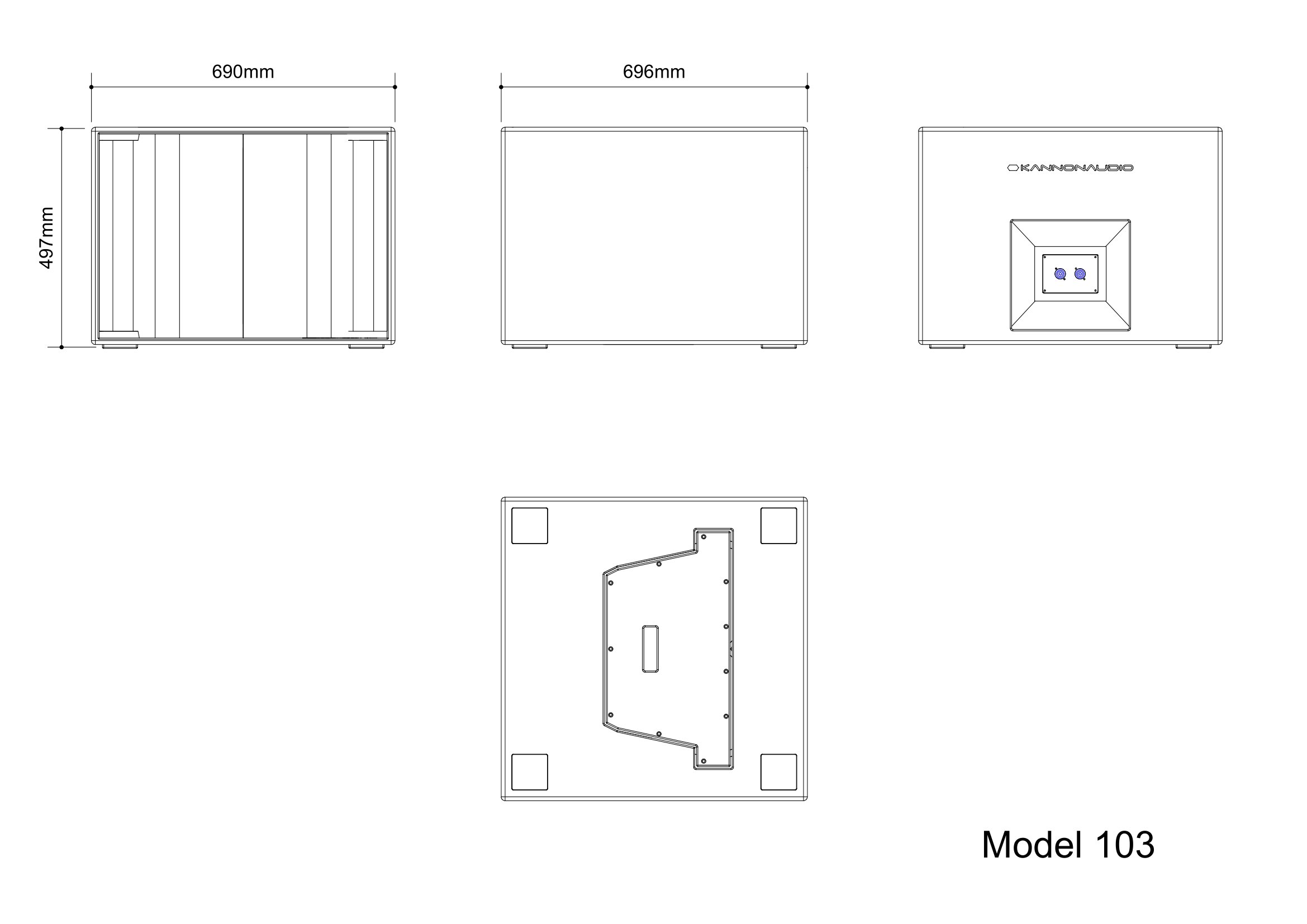

Model 103 — technical drawing, view 3 — Technical drawing · View full size

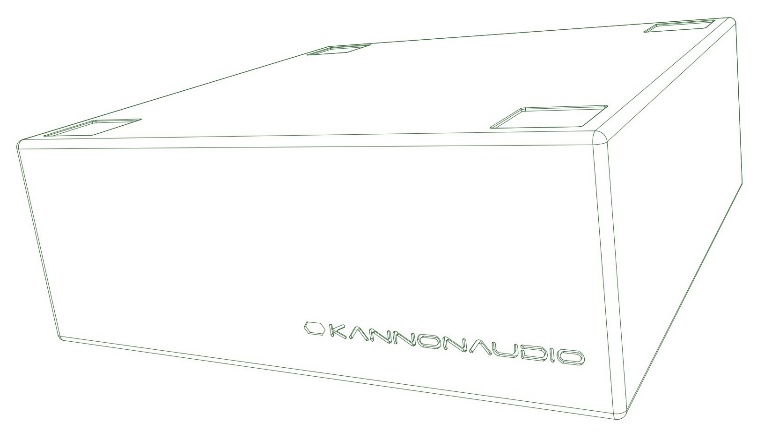

Model 103 — accessory illustration, view 4 — Accessory illustration · View full size

Specification source

Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model103”. Confirm the specification for your order with Kannonaudio.
