System 100 component
Model 103T
Part of System 100. A front-loaded horn system for large clubs and outdoor festivals, with touring and installation models.
Model103 Touring
Product features
- Lighter weight has been achieved by using 15mm and 18mm plywood
- Low weight Neodymium magnets throughout
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 18" | 35Hz-3.5kHz | 1000w | 8Ohm |
Scroll sideways to see all specifications.
| Frequency response | 35Hz - 3.5kHz |
|---|---|
| Connectors | 2 x SpeakON* NL4 |
System notes
All System100 models are constructed with a closed back cabinet front load horn. Since all Unit drivers are located inside the enclosure, it is a structure that will not be damaged by a little rain. Use with Model101T and Model102T.
Original drawings & downloads

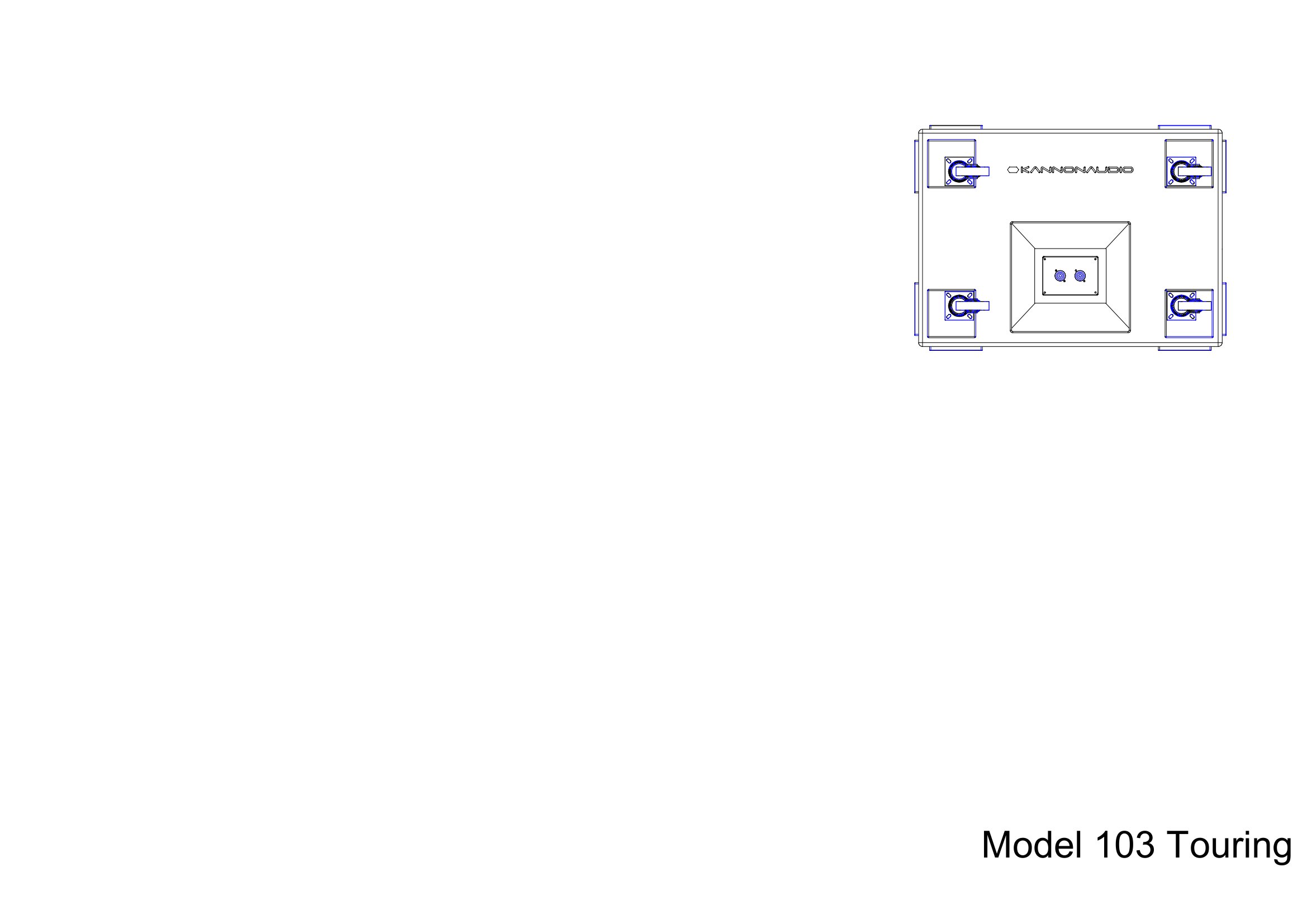

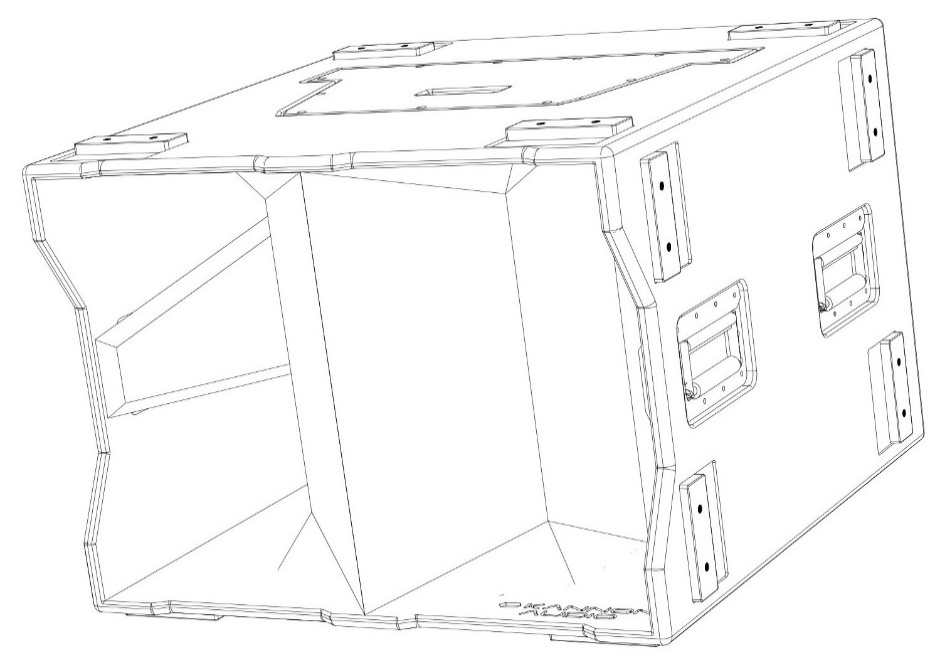

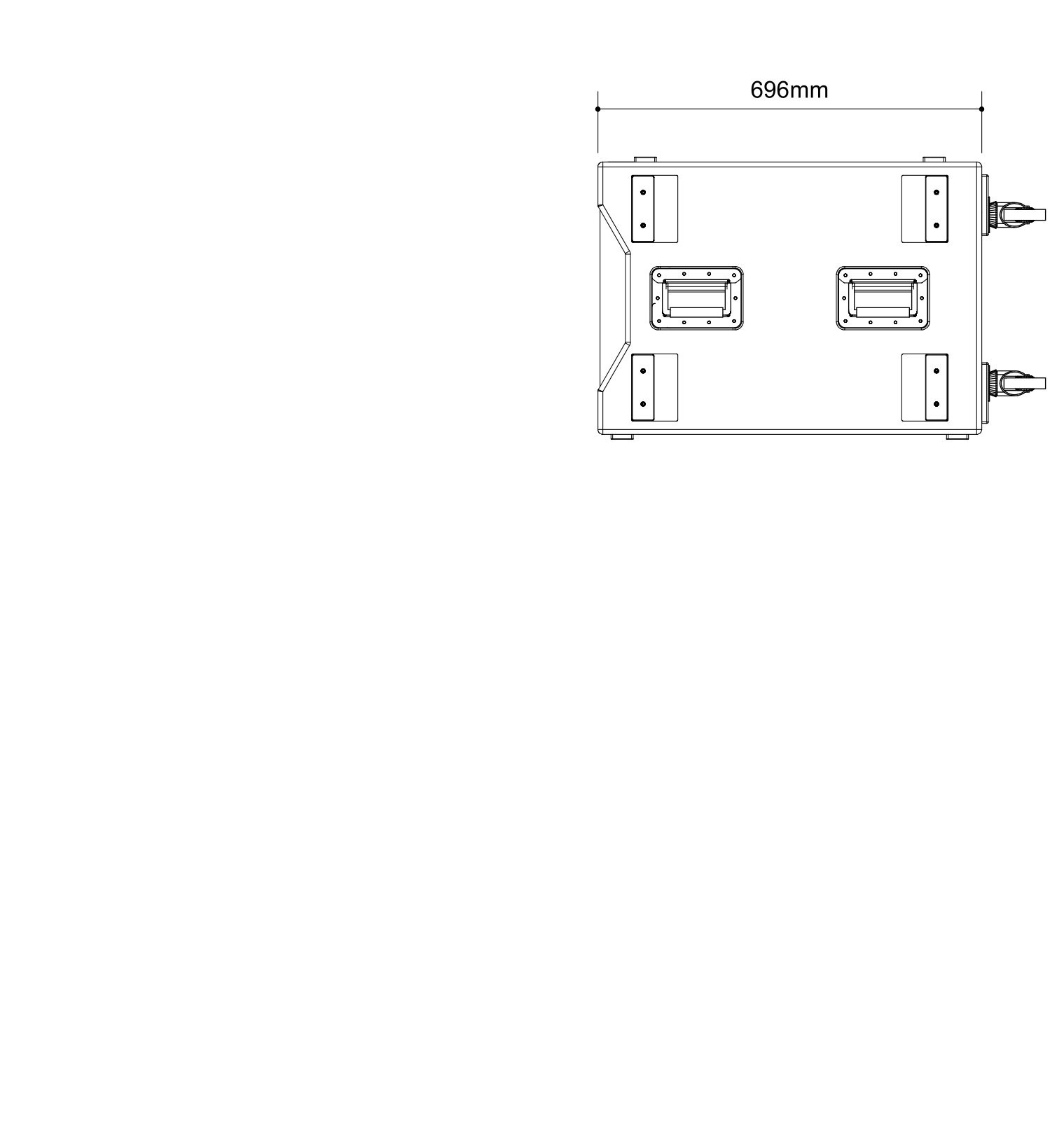

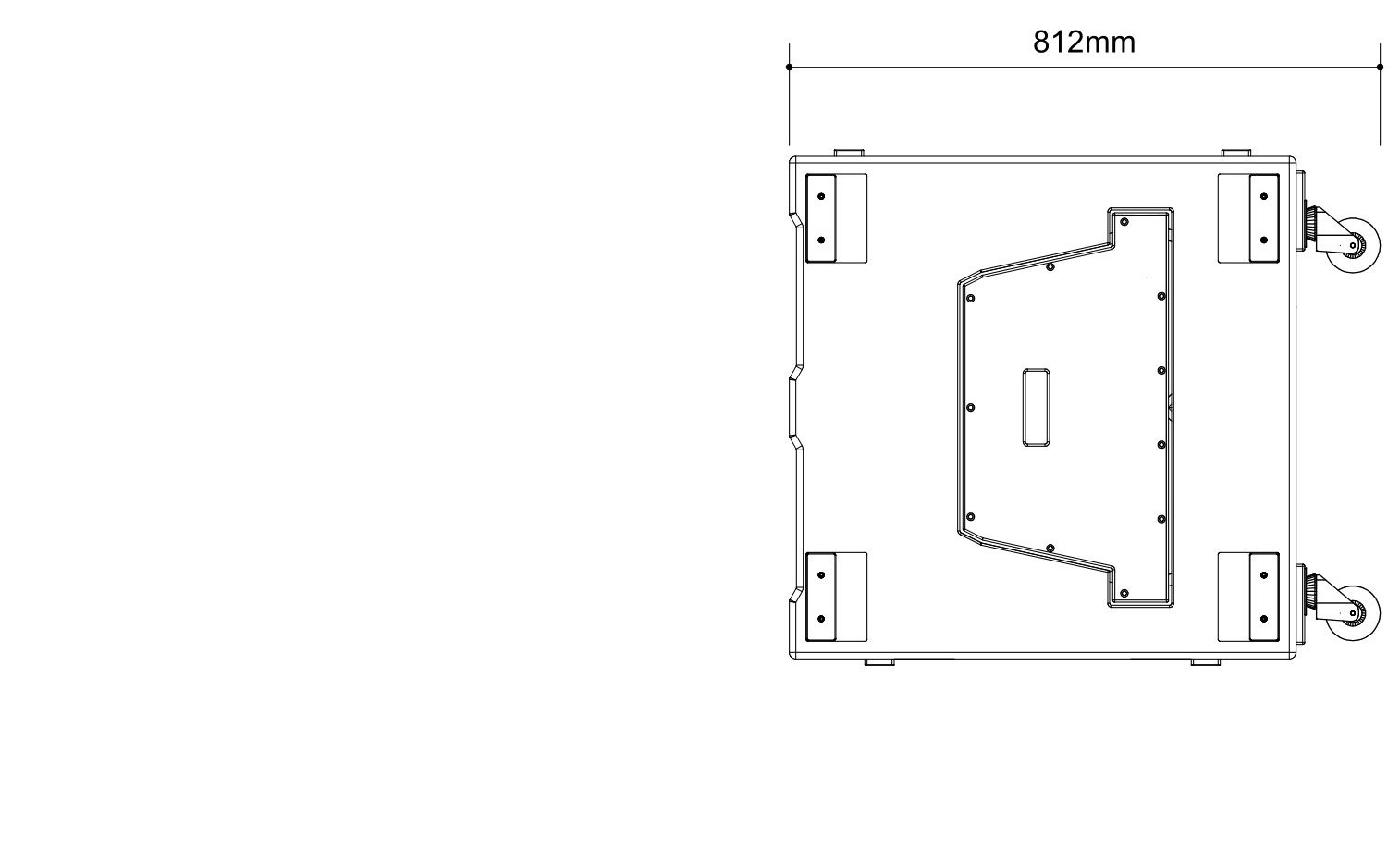

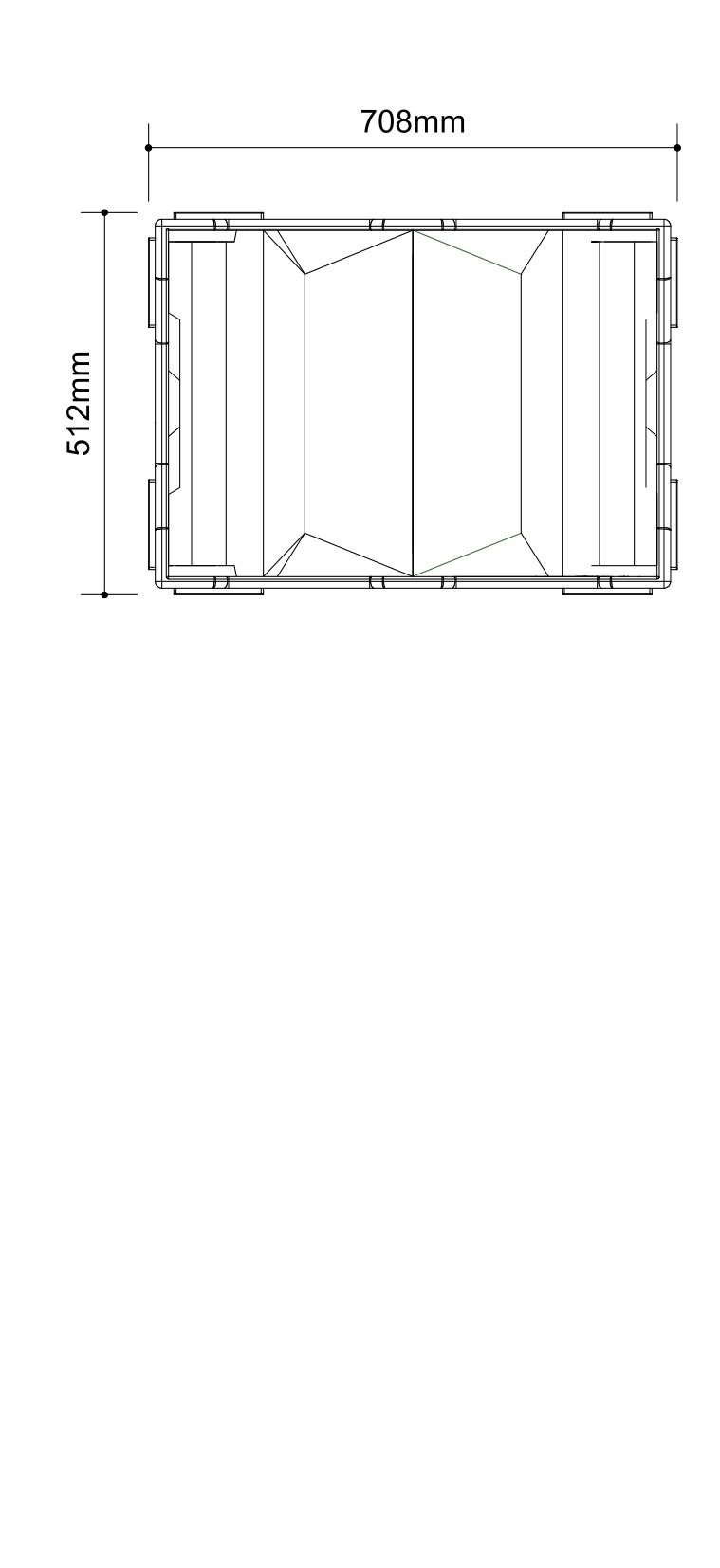

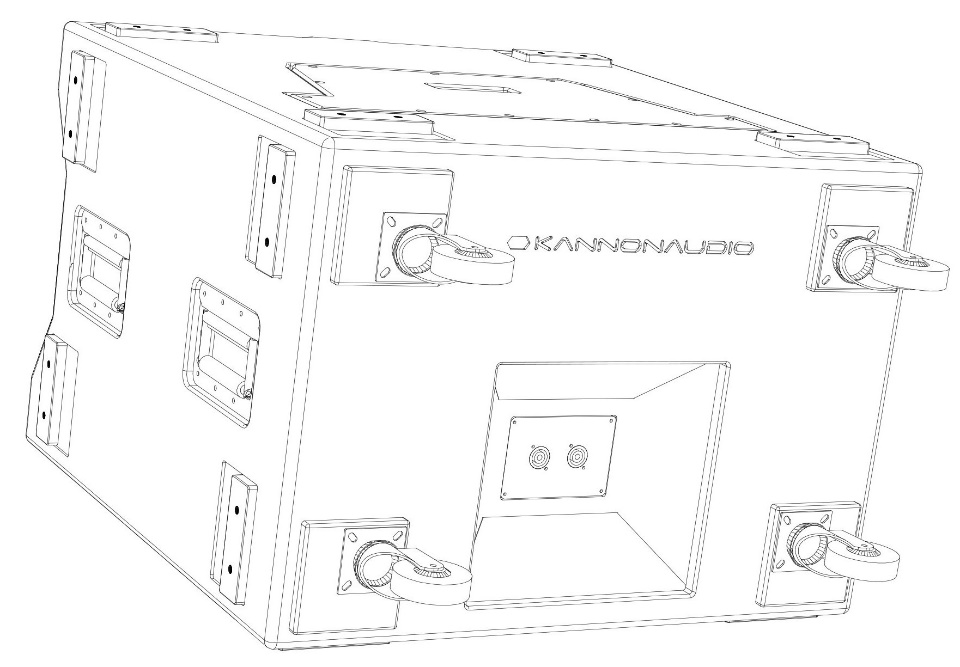

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model103T”. Confirm the specification for your order with Kannonaudio.
