System 100 component
Model 101
Part of System 100. A front-loaded horn system for large clubs and outdoor festivals, with touring and installation models.
Model101 Install
Product features
- Grand stack model
- 15mm plywood enclosure
- Lightweight
- Low weight Neodymium magnets throughout
- Fibre glass molded horn
- This series features the same width and smart stack
- Neutrik speakON* NL4 connectors for reliable long life opeartion
Scroll sideways to see all specifications.
| Driver | Frequency characteristic | Power (AES) | Nominal Impedance |
|---|---|---|---|
| 8” | 290Hz-6kHz | 200w | 16Ohm |
| 1” | 1kHz-20kHz | 50w | 16Ohm |
Scroll sideways to see all specifications.
| Frequency response | 300Hz - 20kHz |
|---|---|
| Nominal dispersion | 75 Horizontal x 25 Vertical |
| Connectors | 2 x SpeakON* NL4 |
System notes
Model101 has a horizontal directivity of 75. Since it has a wider directivity than the front road horns of other companies, it is possible to cover a wide area simply by stacking the main speakers vertically. Model101 has a simple enclosure design for the Grand stack. Since all Unit drivers are located inside the enclosure, it is a structure that will not be damaged by a little rain. Use with Model102 and Model103.
Accessories

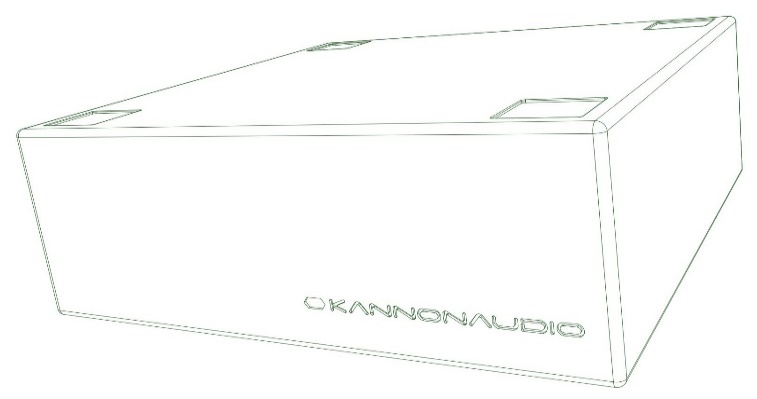

- Spacer
Original drawings & downloads

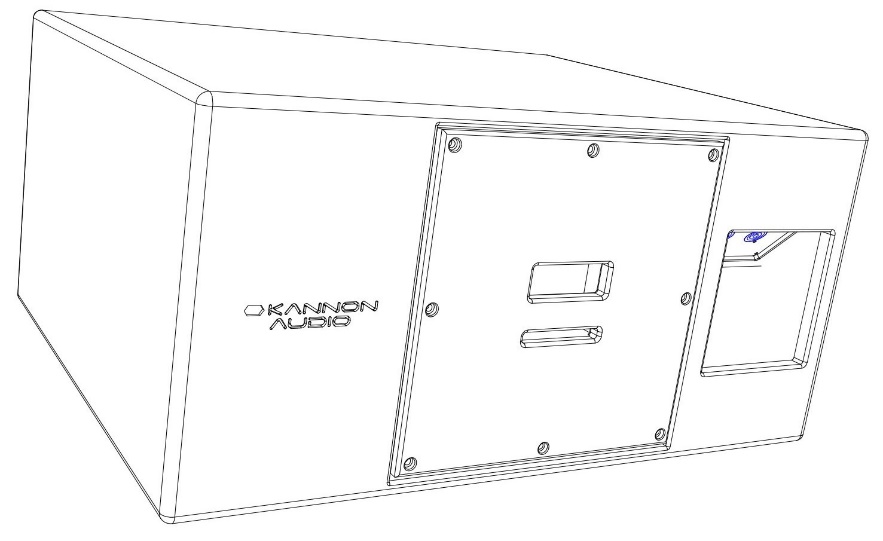

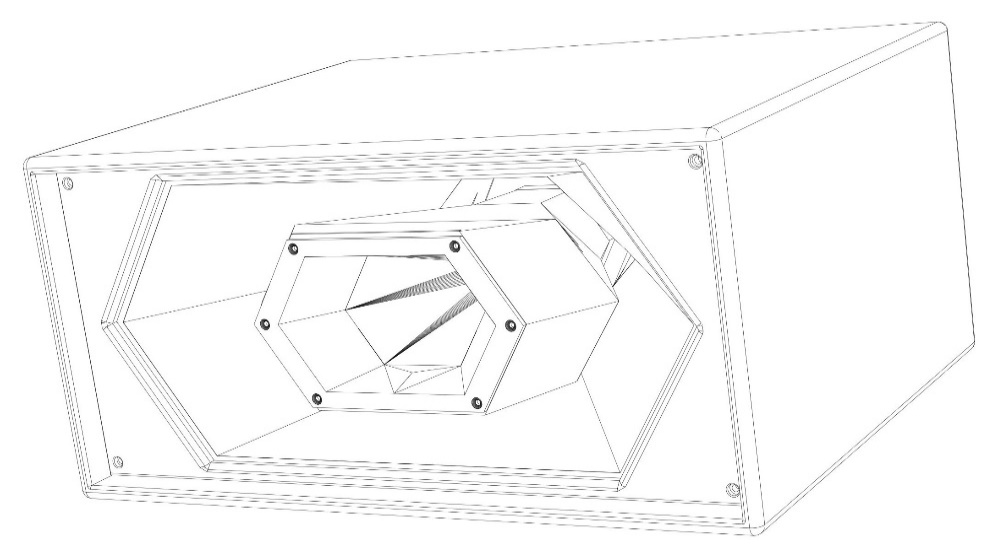

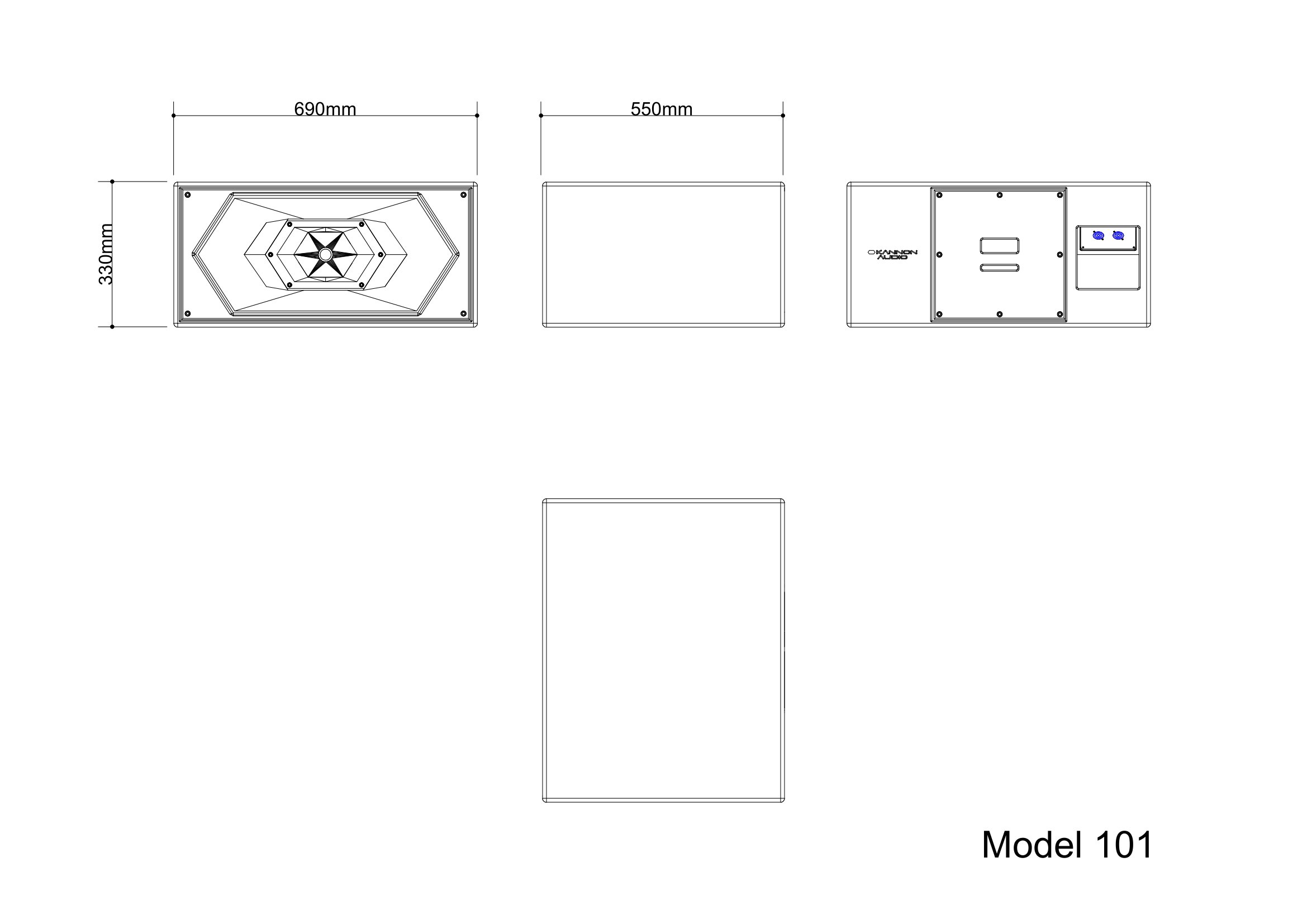

Drawings and views
Cabinet designs, technical drawings and accessory views. Open any image at full size.
Specification source
Technical content and illustrations are taken from the original Kannonaudio workbook, worksheet “Model101”. Confirm the specification for your order with Kannonaudio.
